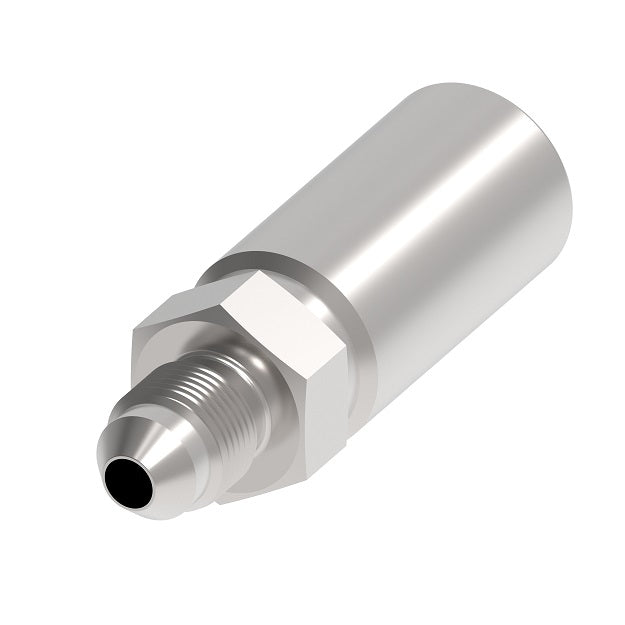

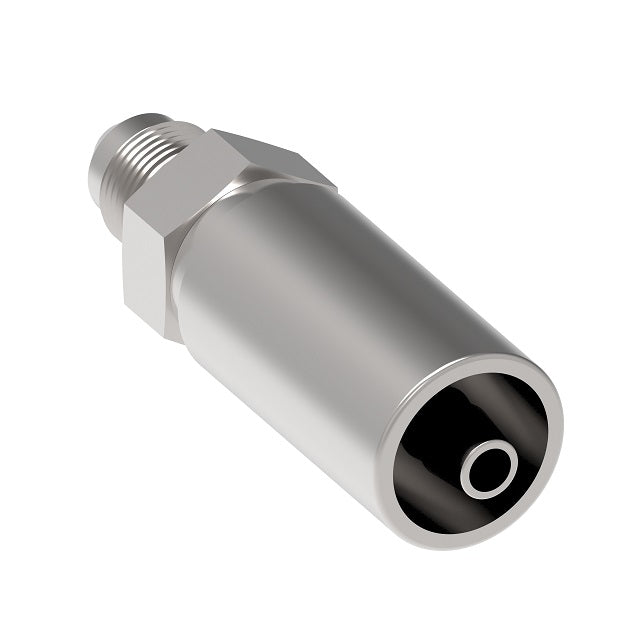

FC5807-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -06 Male 37° JIC x -06 Hose Barb | Carbon Steel

FC5807-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -06 Male 37° JIC x -06 Hose Barb | Carbon Steel

Name: FC5807-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -06 Male 37° JIC x -06 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5807-0606S Danfoss
Price: 47.54 USD
Availability: InStock

$47.54 - $47.54

$47.54

$47.54 - $47.54

$47.54

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Male 37° JIC - Straight

Specifications for Variant SKU: FC5807-0606S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/8in Male JIC, 3/8in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series \| FC370 Series

Part Number Carbon Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter	Hex Size
FC5807-0403S	0.25"	-04	0.10"	-	0.56"
FC5807-0404S	0.25"	-04	0.15"	0.6875"	0.62"
FC5807-0504S	0.3125"	-05	0.15"	0.6875"	0.62"
FC5807-0505S	-	-05	-	-	-
FC5807-0604S	-	-06	-	-	-
FC5807-0605S	0.375"	-06	0.20"	-	0.69"
FC5807-0606S	-	-06	-	-	-
FC5807-0806S	0.375"	-06	0.28"	-	0.81"
FC5807-0808S	-	-08	-	-	-
FC5807-1212S	0.75"	-12	0.59"	-	1.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
