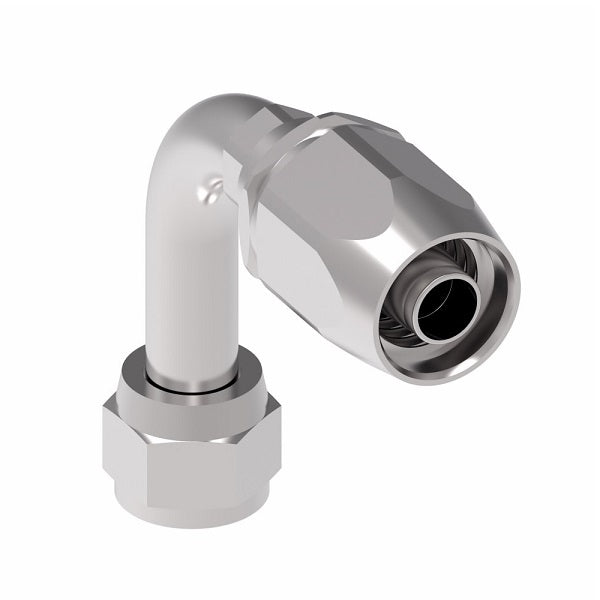

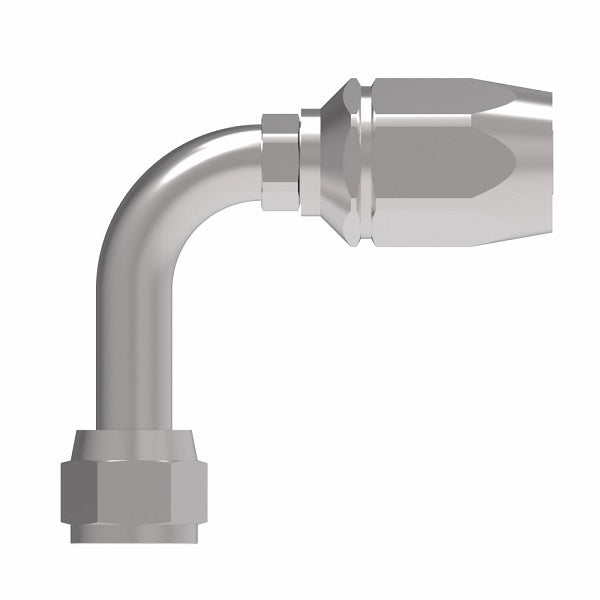

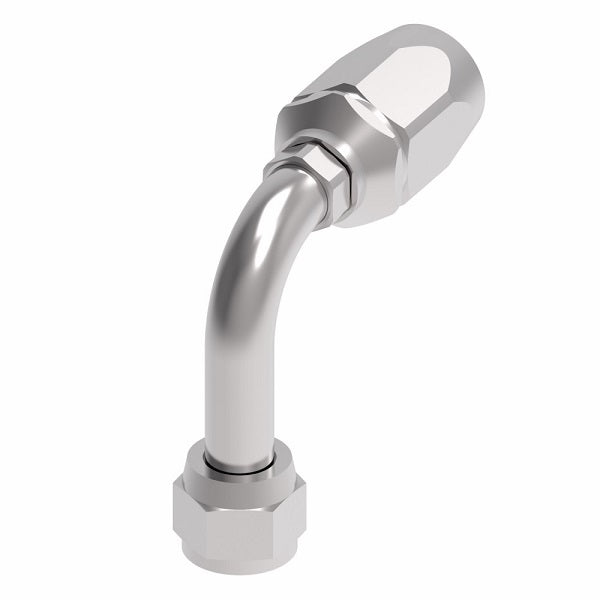

FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

Name: FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5991-0404S Danfoss
Price: 56.12 USD
Availability: InStock

$56.12 - $56.12

$56.12

$56.12 - $56.12

$56.12

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel Long Drop - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5991-0404S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female JIC, 1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FC5991-0404S	-04	7/16-20	2.40"	1.23"	0.17"	1.80"
FC5991-0606S	-06	9/16-18	2.72"	1.38"	0.31"	2.18"
FC5991-0808S	-08	3/4-16	3.15"	1.64"	0.39"	2.43"
FC5991-1212S	-12	1-1/16-12	4.11"	2.24"	0.61"	3.73"
FC5991-1616S	-16	1-5/16-12	4.84"	2.79"	0.82"	4.58"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
