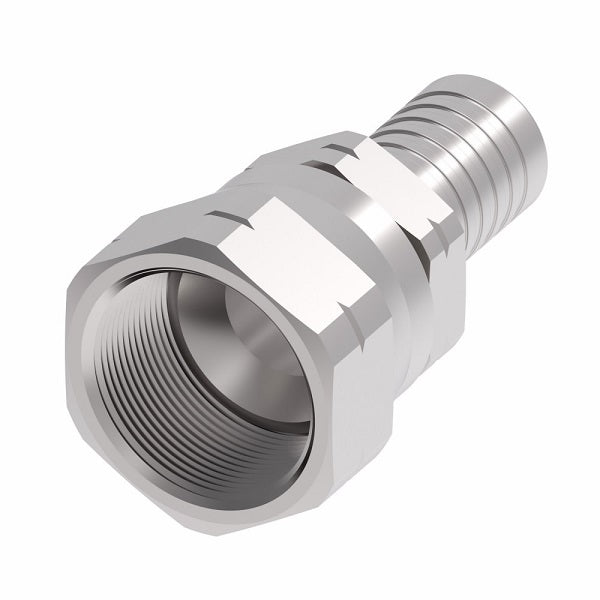

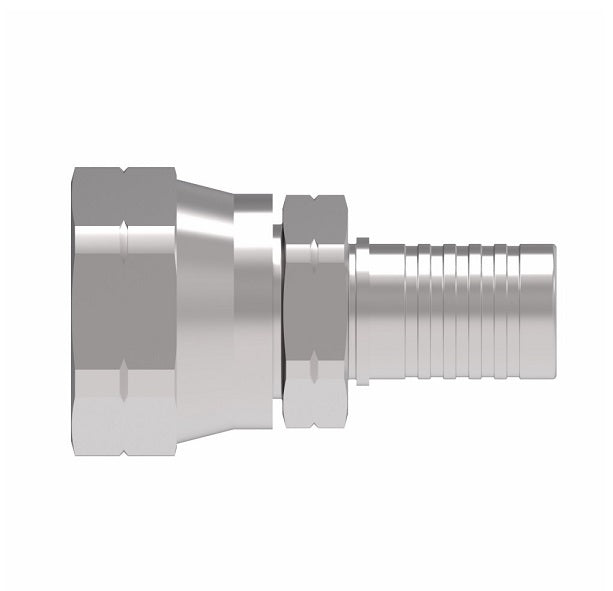

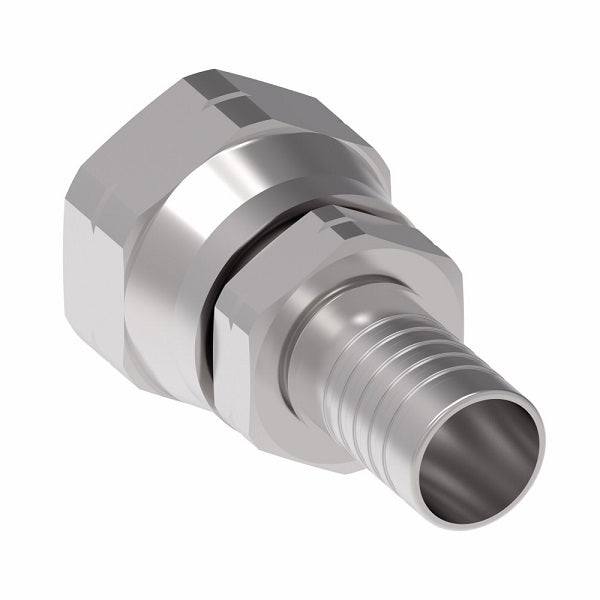

FC6216-0403S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female SAE 45° Swivel x -03 Hose Barb | Steel
FC6216-0403S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female SAE 45° Swivel x -03 Hose Barb | Steel
FC6216-0403S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female SAE 45° Swivel x -03 Hose Barb | Steel
FC6216-0403S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female SAE 45° Swivel x -03 Hose Barb | Steel

FC6216-0403S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female SAE 45° Swivel x -03 Hose Barb | Steel

$13.84 - $13.84
$13.84
$13.84 - $13.84
$13.84

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC6216-0403S Danfoss
Brand: Aeroquip
Series: FC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female SAE 45 Flare, 3/16in Hose Barb
Material(s): Steel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
- FC6216-0403S - - -03 - - - - -
FC7216-0404S FC6216-0404S FC3596-04S 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
- FC6216-0505S FC3443-04S 1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC7216-0606S FC6216-0606S FC3443-05S 5/8-18 -06 1.63" 1.14" 0.25" 3/4" 9/16"
FC7216-0808S FC6216-0808S FC3596-08S 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
- FC6216-1008S - - -08 - - - - -
FC7216-1010S FC6216-1010S FC3443-08S 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC7216-1212S FC6216-1212S FC3596-12S 1-1/16-14 -12 2.29" 1.41" 0.56" 1-1/4" 1"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
