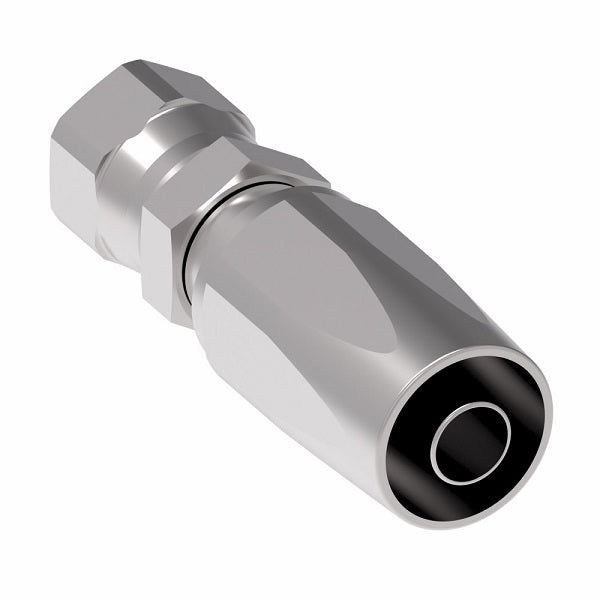

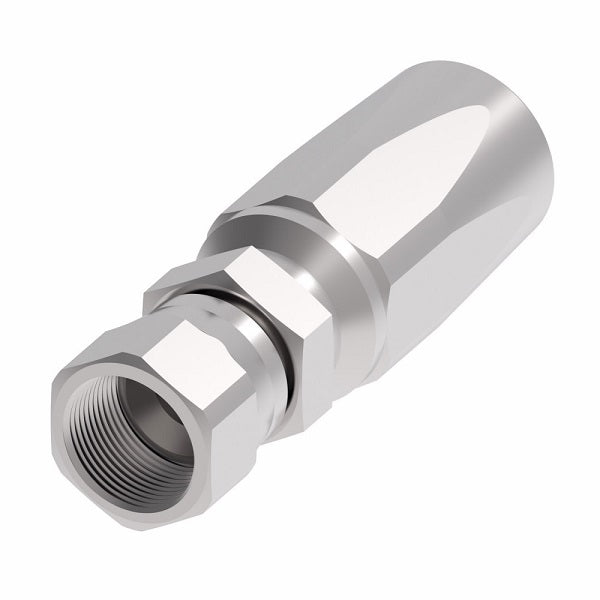

FC7988-1616S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
FC7988-1616S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
FC7988-1616S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
FC7988-1616S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

FC7988-1616S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

$99.38 - $99.38
$99.38
$99.38 - $99.38
$99.38

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7988-1616S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
FC7988-0404S -04 7/16-20 2.50" 1.46" 0.17"
FC7988-0604S -04 9/16-18 2.64" 1.60" 0.17"
FC7988-0606S -06 9/16-18 2.91" 1.78" 0.31"
FC7988-0806S -06 3/4-16 3.04" 1.9" 0.31"
FC7988-0808S -08 3/4-16 3.18" 1.70" 0.39"
FC7988-1008S -08 7/8-14 3.30" 1.82" 0.39"
FC7988-1212S -12 1-1/16-12 3.80" 2.20" 0.61"
FC7988-1616S -16 1-5/16-12 4.33" 2.21" 0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
