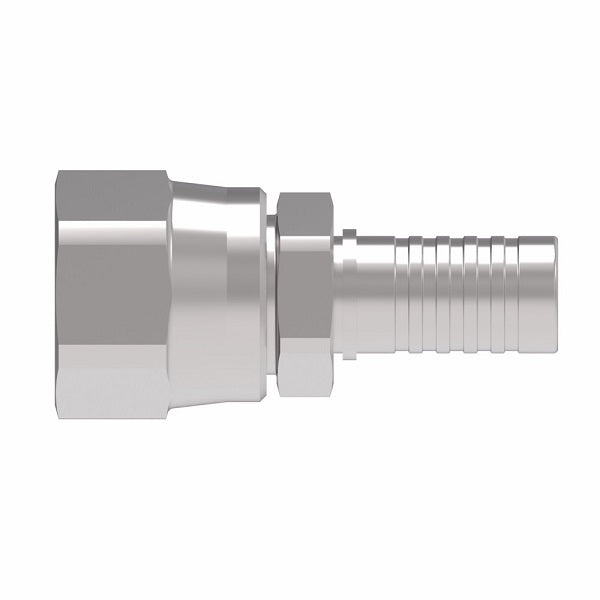

FC8779-0505S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel
FC8779-0505S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel | Pack of 10
FC8779-0505S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel | Pack of 10
FC8779-0505S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel

FC8779-0505S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel | Pack of 10

$193.40 - $193.40
$193.40
$193.40 - $193.40
$193.40

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC8779-0505S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 5/16in Female JIC, 5/16in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
FC9779-0404S FC8779-0404S FC3596-04S 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
FC9779-0505S FC8779-0505S FC3443-04S 1-1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC9779-0606S FC8779-0606S FC3443-05S 9/16-18 -06 1.60" 1.11" 0.25" 11/16" 9/16"
FC9779-0808S FC8779-0808S FC3596-08S 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
FC9779-1010S FC8779-1010S FC3443-08S 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC9779-1212S FC8779-1212S FC3596-12S 11/16-12 -12 2.29" 1.41" 0.56" 1-1/4" 1"
FC9779-1616S FC8779-1616S FC3596-16S 1-5/16-12 -16 2.52" 1.64" 0.80" 1-1/2" 1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
