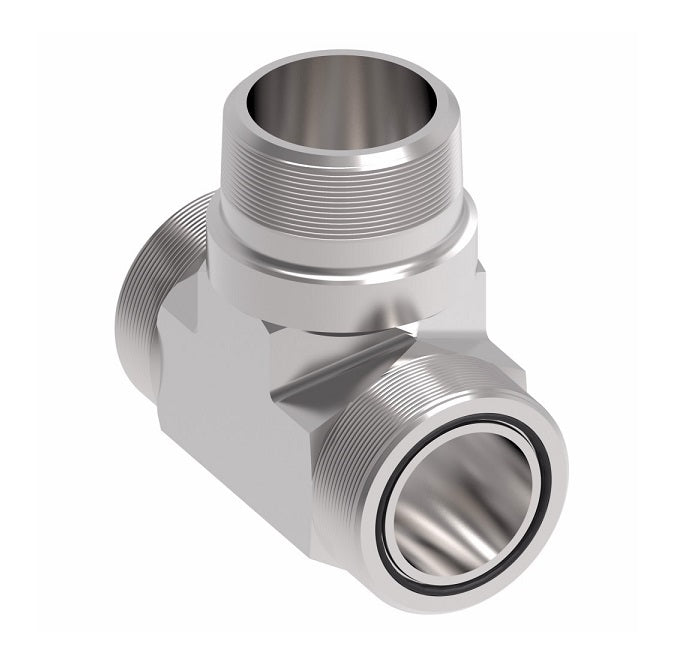

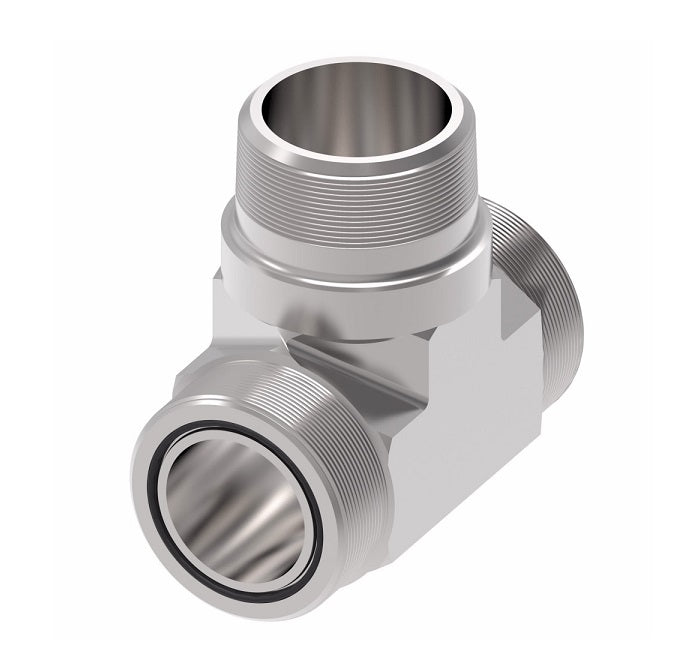

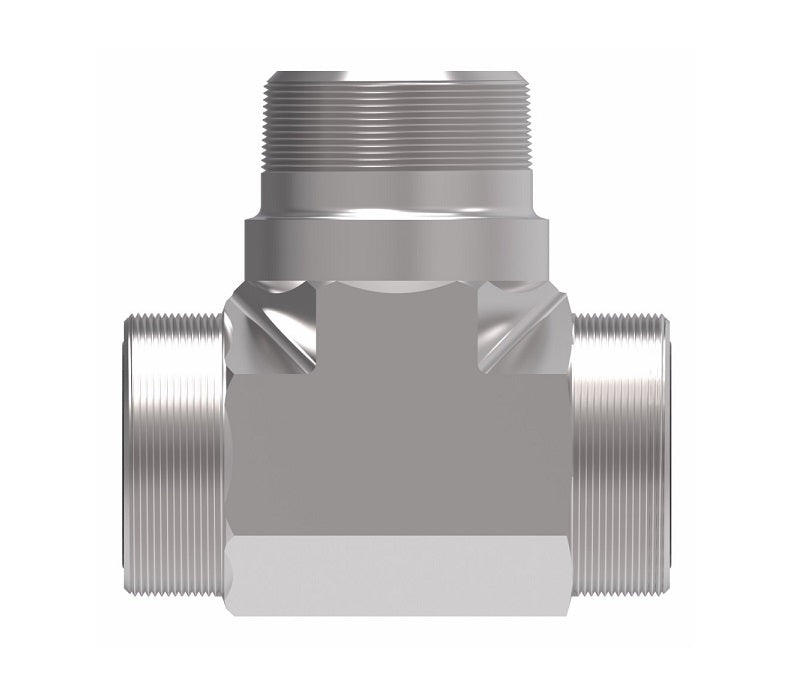

FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

$42.18 - $42.18
$42.18
$42.18 - $42.18
$42.18

Aeroquip® by Danfoss
ORS/ORS/Male NPTF Branch Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male NPTF
Tee

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2001T1212S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 3/4in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 520425
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2001T0404S 0.25" 9/16-18 1/4-18 0.92" 1.08"
FF2001T0604S 0.38" 11/16-16 1/4-18 0.98" 1.08"
FF2001T0606S 0.38" 11/16-16 3/8-18 1.04" 1.21"
FF2001T0806S 0.50" 13/16-16 3/8-18 1.10" 1.21"
FF2001T0808S 0.50" 13/16-16 1/2-14 1.21" 1.53"
FF2001T1212S 0.75" 1-3/16-12 3/4-14 1.47" 1.65"
FF2001T1616S 1.00" 1-7/16-12 1-11-1/2 1.64" 2.03"
FF2001T2424S 1.50" 2-12 1-1/2-11-1/2 1.92" 2.70"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
