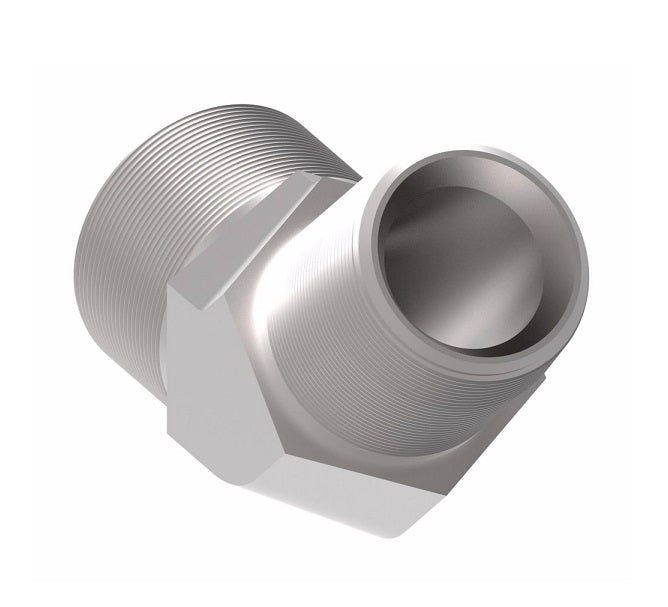

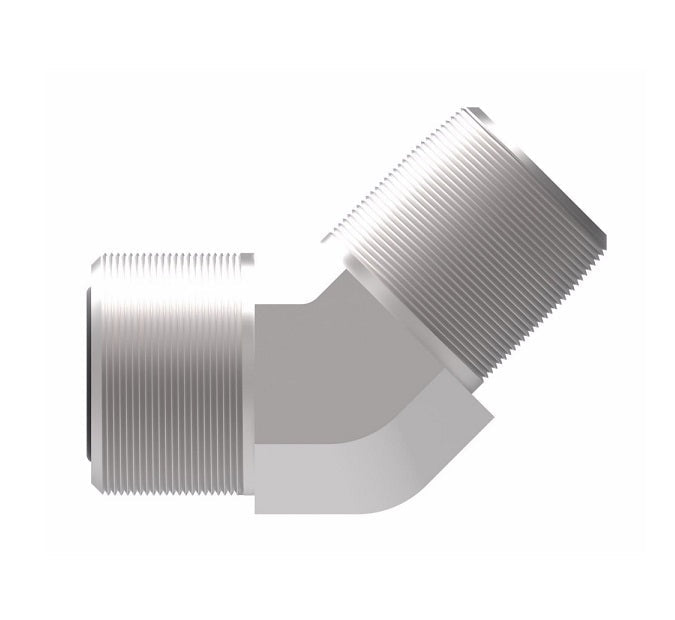

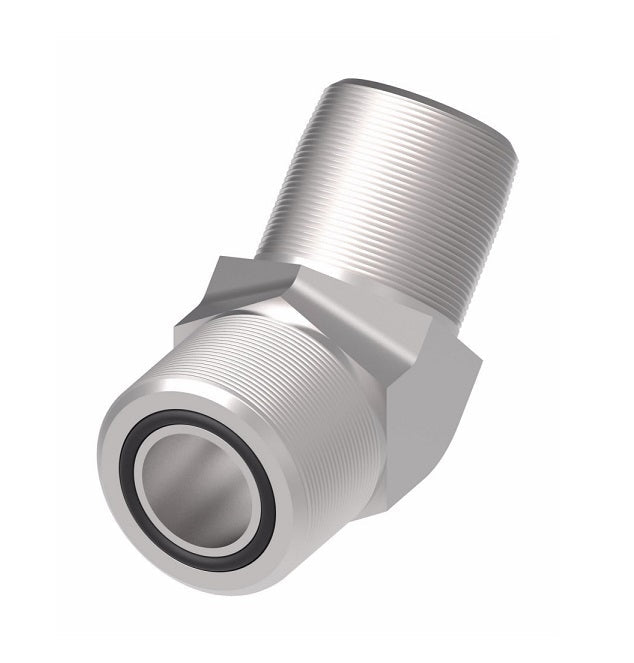

FF2093T0402S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -04 Male O-Ring Face Seal x -02 Male NPTF | Steel

FF2093T0402S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -04 Male O-Ring Face Seal x -02 Male NPTF | Steel

Name: FF2093T0402S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -04 Male O-Ring Face Seal x -02 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: FF2093T0402S Danfoss
Price: 7.28 USD
Availability: InStock

$7.28 - $7.28

$7.28

$7.28 - $7.28

$7.28

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2093T0402S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Male O-Ring Face Seal, 1/8in Male NPTF
Material(s):	Steel

Specifications:
Ref. SAE 520302
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2093T0402S	0.25"	9/16-18	1/8-27	0.63"	0.68"
FF2093T0404S	0.25"	9/16-18	1/4-18	0.68"	0.93"
FF2093T0604S	0.38"	11/16-16	1/4-18	0.74"	0.93"
FF2093T0606S	0.38"	11/16-16	3/8-18	0.74"	1.04"
FF2093T0806S	0.50"	13/16-16	3/8-18	0.80"	1.04"
FF2093T0808S	0.50"	13/16-16	1/2-14	0.82"	1.20"
FF2093T1008S	0.63"	1-14	1/2-14	0.92"	1.20"
FF2093T1212S	0.75"	1-3/16-12	3/4-14	1.02"	1.23"
FF2093T1616S	1.00"	1-7/16-12	1-11-1/2	1.18"	1.51"
FF2093T2020S	1.25"	1-11/16-12	1-1/4-11-1/2	1.26"	1.69"
FF2093T2424S	1.50"	2-12	1-1/2-11-1/2	1.45"	1.80"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
