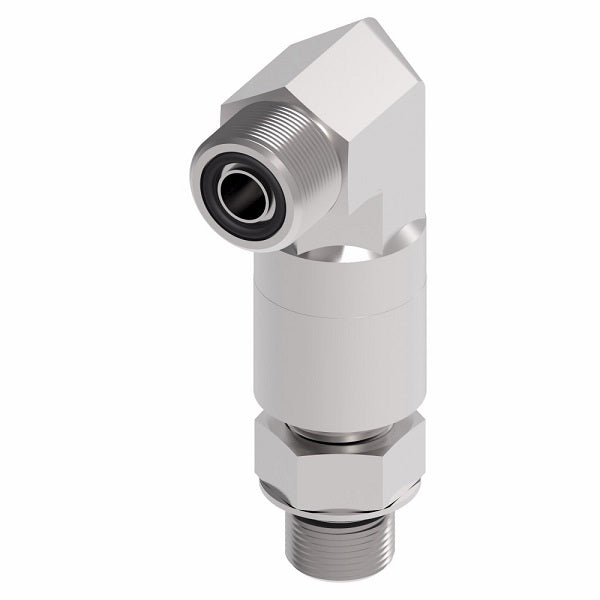

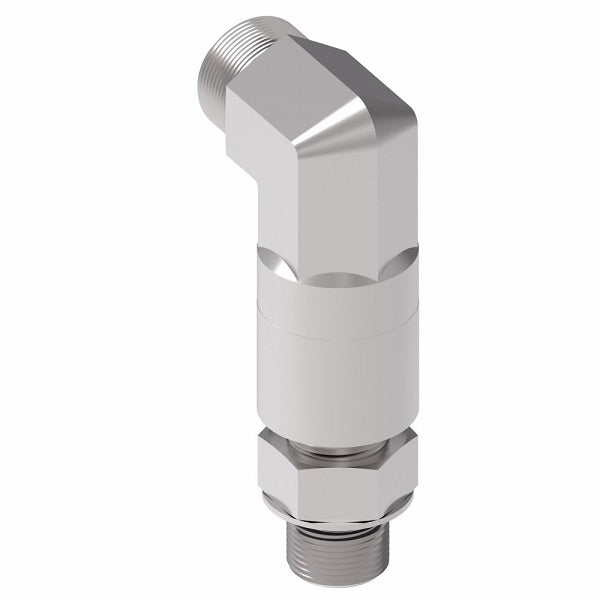

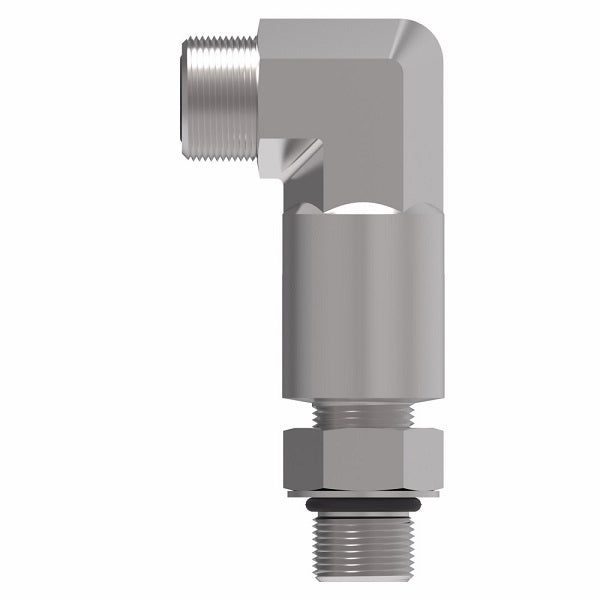

FF2227T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel
FF2227T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel
FF2227T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel
FF2227T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel

FF2227T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel

$144.40 - $144.40
$144.40
$144.40 - $144.40
$144.40

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Long 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2227T1616-213 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Face Seal, 1in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 521520
Construction:
  • Buna-N O-Rings are standard.
Steel with
Buna-N O-Ring
Part Number 		Steel with
Viton O-Ring
Part Number 		Tube OD Thread T1 Thread T2 A B C
FF2227T0404S 0.25" 9/16-18 7/16-20 0.85" 2.23" 0.43"
FF2227T0606S 0.38" 11/16-16 9/16-18 0.98" 2.61" 0.47"
FF2227T0808S 0.50" 13/16-16 3/4-16 1.10" 2.95" 0.55"
FF2227T1010S 0.63" 1-14 7/8-14 1.31" 3.51" 0.63"
FF2227T1212S 0.75" 1-3/16-12 1-1/16-12 1.47" 3.97" 0.73"
FF2227T1616S FF2227T1616-213 1.00" 1-7/16-12 1-5/16-12 1.64" 4.51" 0.73"
FF2227T2020S 1.25" 1-11/16-12 1-5/8-12 1.76" 4.98" 0.73"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
