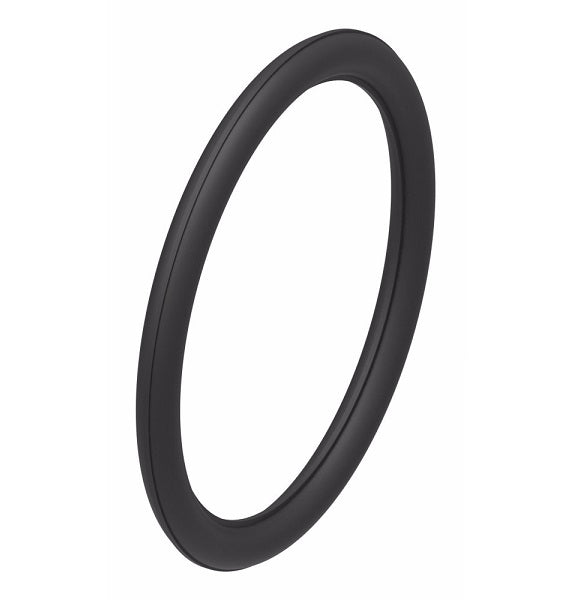

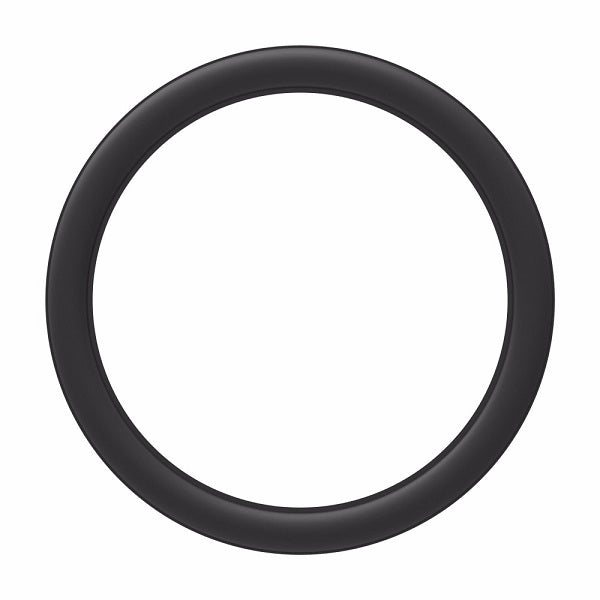

FF9016-225 Aeroquip by Danfoss | -24 EPDM O-Ring for SAE J518 Split Flange | 1-1/2" Flange Size

Name: FF9016-225 Aeroquip by Danfoss | -24 EPDM O-Ring for SAE J518 Split Flange | 1-1/2" Flange Size
Brand: Danfoss/Eaton
SKU: FF9016-225 Danfoss
Price: 3.46 USD
Availability: InStock

$3.46 - $3.46

$3.46

$3.46 - $3.46

$3.46

Aeroquip® by Danfoss
O-Ring for SAE J518 Split Flanges

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF9016-225 Danfoss
Shape (Orientation):	No Orientation
Seal Material(s):	EPDM

Technical Info:
Crimp Fitting Socket Data.PDF

O-Ring Base Number	Material	Operating Temperature Range
FF9016-	EPDM 80 Durometer	-65°F to +300°F (-55°C to +150°C)
FF9446-	Buna-N 90 Durometer	-40°F to +250°F (-40°C to +121°C)
22046-	Viton 90 Durometer	-15°F to +400°F (-25°C to +205°C


EPDM Part Number	Buna-N Part Number	Viton* Part Number	Flange Dash Size	Nominal Flange Size	A	E
-	FF9446-210	22046-210	-08	1/2"	0.734"	0.139"
FF9016-214	FF9446-214	22046-214	-12	3/4"	0.984"	0.139"
FF9016-219	FF9446-219	22046-219	-16	1"	1.296"	0.139"
FF9016-222	FF9446-222	22046-222	-20	1-1/4"	1.484"	0.139"
FF9016-225	FF9446-225	22046-225	-24	1-1/2"	1.859"	0.139"
FF9016-228	-	22046-228	-32	2"	2.234"	0.139"
-	FF9446-232	22046-232	-40	2-1/2"	2.734"	0.139"
-	FF9446-237	-	-48	3"	3.359"	0.139"

* Viton is a trademark of The Chemours Company FC, LLC
