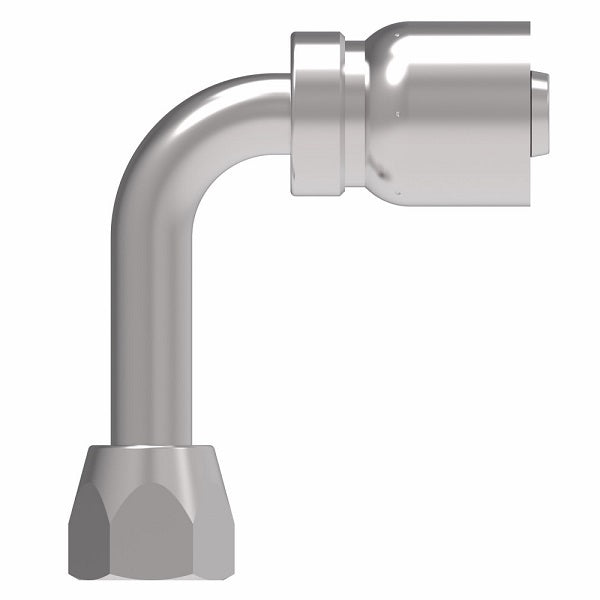

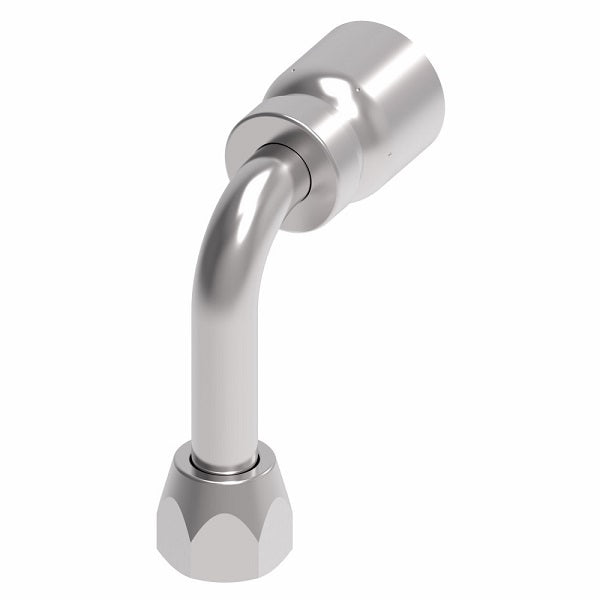

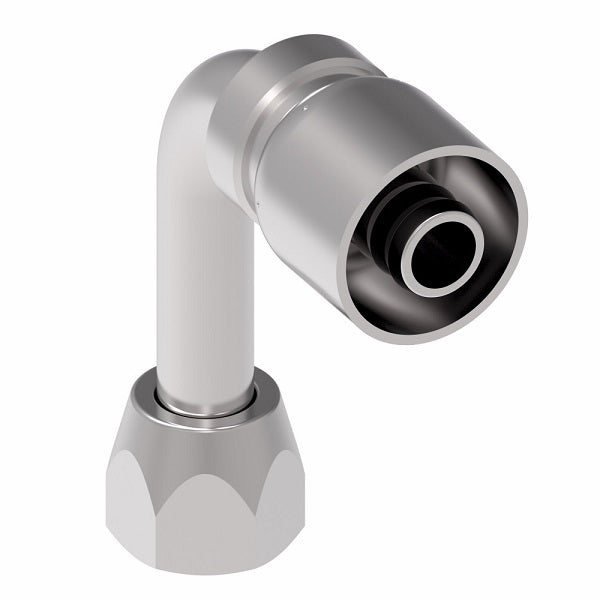

FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel

FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel

Name: FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3245-1010S Danfoss
Price: 38.36 USD
Availability: InStock

$38.36 - $38.36

$38.36

$38.36 - $38.36

$38.36

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel Long Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ3245-1010S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female JIC, 5/8in Hose Barb, 5/8in Female SAE 45 Flare
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3245-0404S	-04	7/16-20	1.61"	0.83"	1.80"	0.56"
FJ3245-0808S	-08	3/4-16	2.19"	1.39"	2.43"	0.88"
FJ3245-0810S	-10	3/4-16	2.30"	1.42"	2.43"	0.88"
FJ3245-1010S	-10	7/8-14	2.46"	1.57"	2.57"	1.00"
