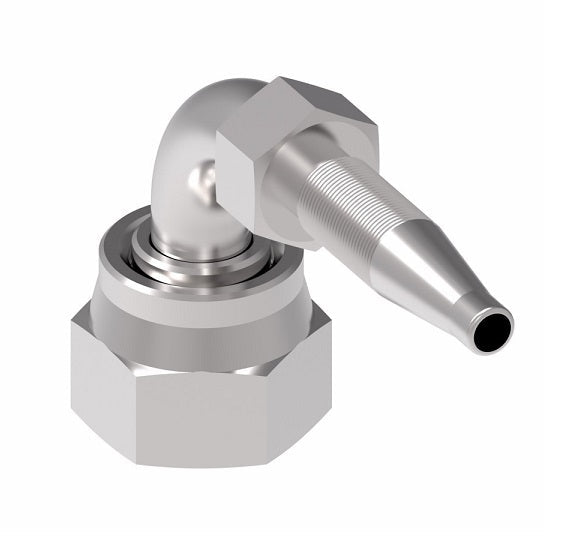

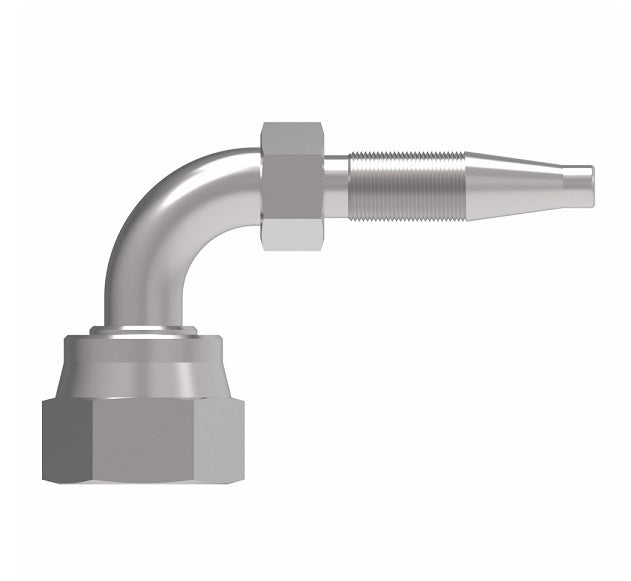

FJ8734-0808S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ8734-0808S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$955.20 - $955.20

$955.20

$955.20 - $955.20

$955.20

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 90° Elbow

Specifications for Variant SKU: FJ8734-0808S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
1RA4FRB4	FJ8734-0404S	1RA4	9/16-18	-04	2.32"	1.28"	0.17"	0.82"
1RA6FRB6	FJ8734-0606S	1RA6	11/16-16	-06	2.65"	1.52"	0.26"	0.90"
-	FJ8734-0808S	1RA8	13/16-16	-08	3.01"	1.54"	0.38"	1.15"
-	FJ8734-1212S	1RA12	1-3/16-12	-12	4.05"	2.45"	0.61"	1.88"
-	FJ8734-1616S	1RA16	1-7/16-12	-16	4.69"	2.57"	0.81"	2.21"

<-
