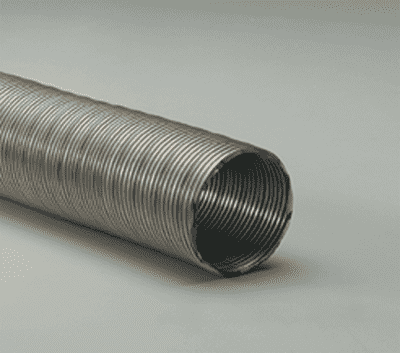

5-Bendway-Plus-25 Flexaust #5350500025 Bendway Plus 5 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

Save $79.81 Save $79.81
Original price $798.14
Original price $798.14 - Original price $798.14
Original price $798.14
Current price $718.33
$718.33 - $718.33
Current price $718.33

Flexaust Bendway® Plus Air and Fume Duct Hose Manufactured using 316Ti Stainless Steel in a patented roll lock construction

Package Quantity: 25 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: 5-Bendway-Plus-25 Flexaust | 25 |
Brand: Bendway
Series: Bendway Plus
Hose Color(s): Metallic
Internal Diameter: 5in
MAWP: 13
Tubing Construction: 316 Stainless Steel

SPECIFICATIONS

Applications: Brick Kilns, Chemical Fume Extraction, Chemical Plants, Circuit Board Cooling, Diesel/Engine Exhaust, Dynamometer Testing, Foundries, Fume Exhaust, Jet Fuel Vapor Venting, Paper Trim Conduit, Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: 316Ti Stainless Steel
Reinforcement: N/A Cover: N/A
Temperature Range: 0 deg. F to 1650 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Durable corrugations allow product to be dragged, bent, & reshaped numerous times without damage or breaking.
  • Suitable for fume & air exhaust applications with extremely high temperatures.
  • Very flexible.
  • Titanium stabilized 316 stainless alloy for superior high temperature corrosion resistance.
  • Suitable for chemical fume exhausting, high temperature, & corrosive applications where both positive & negative pressures are involved.
Part Number 25 ft Reels Part Number 15 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 15ft (Lbs/Ft)
Bendway Plus 3in N/A 3" .006" 13" N/A 29 18 11.75 lbs N/A
Bendway Plus 4in N/A 4" .006" 15" N/A 29 15 16 lbs N/A
Bendway Plus 5in N/A 5" .006" 17" N/A 29 13 20 lbs N/A
Bendway Plus 5.5in N/A 5.5" .006" 19" N/A 29 12 21.25 lbs N/A
Bendway Plus 6in N/A 6" .006" 24" N/A 29 11 23 lbs N/A
Bendway Plus 7in N/A 7" .006" 26" N/A 29 9.5 26.5 lbs N/A
Bendway Plus 8in N/A 8" .006" 28" N/A 29 8.5 30 lbs N/A
N/A Bendway Plus 9in 9" .006" 30" N/A 29 18 N/A 20.7 lbs
N/A Bendway Plus 10in 10" .006" 32" N/A 29 6 N/A 23.25 lbs
N/A Bendway Plus 11in 11" .006" 34" N/A 29 5.5 N/A 25.35 lbs
N/A Bendway Plus 12in 12" .006" 37" N/A 29 5 N/A 27.45 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
