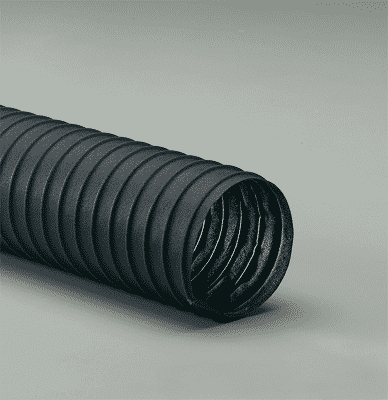

5-CW325-25 Flexaust #1600500025 CW-325 (CW325) 5 inch Air and Fume Duct Hose - 25ft

  • $286.67

SPECIFICATIONS

Applications: Automotive, Chemical Fume Extraction, Diesel, Engine, Fume, and Garage Exhaust, Dry Cleaning, Drying Systems, Glass Drying, Landfill Venting, Ozone, Paper Mills, Plastics Industry, Pollution Control, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply black acrylic coated polyester fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for air & fume handling applications.
  • Excellent choice for overhead vehicle exhaust systems.
  • Light weight & flexible.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CW-325 2in 2" N/A 1.6" 4:1 29 30 6.25 lbs
CW-325 2.5in 2.5" N/A 1.78" 4:1 29 30 6.5 lbs
CW-325 3in 3" N/A 2.3" 5:1 29 30 7 lbs
CW-325 4in 4" N/A 2.8" 5:1 29 18 10.25 lbs
CW-325 5in 5" N/A 3.5" 5:1 16 14 15 lbs
CW-325 6in 6" N/A 3.8" 6:1 14 7 17.25 lbs
CW-325 8in 8" N/A 5.2" 6:1 7 5 23 lbs
CW-325 10in 10" N/A 6.4" 6:1 6 4 23 lbs
CW-325 12in 12" N/A 8" 6:1 5 3.7 50 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
