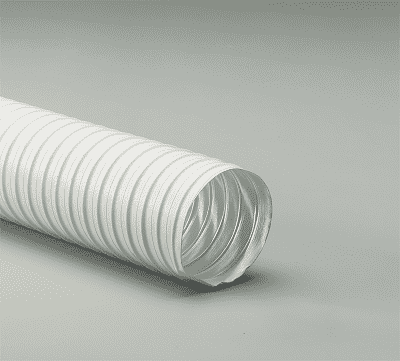

10-White-25 Flexaust #2201000025 White 10 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

  • $570.67

SPECIFICATIONS

Applications: Food Grade, HEPA, Pharmaceutical SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply white acrylic coated polyester fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Efficient flow characteristics.
  • Designed for applications with wide temperature ranges.
  • Good abrasion resistance.
  • Ideal for clean room applications.
  • Manufactured with FDA acceptable materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
White 1.5in 1.5" N/A 1.32" 3:1 29 30 5 lbs
White 1.75in 1.75" N/A N/A N/A N/A N/A N/A
White 2in 2" N/A 1.7" 3:1 29 30 7.5 lbs
White 2.5in 2.5" N/A N/A N/A N/A N/A N/A
White 3in 3" N/A 2.5" 4:1 29 29 10 lbs
White 4in 4" N/A 3.2" 4:1 29 30 15 lbs
White 5in 5" N/A 4" 4:1 16 29 17.5 lbs
White 6in 6" N/A 4.5" 4:1 18 12 25 lbs
White 7in 7" N/A N/A N/A N/A N/A N/A
White 8in 8" N/A 5.6" 4:1 12 8 30 lbs
White 10in 10" N/A 7" 5:1 5 8 37.5 lbs
White 12in 12" N/A 8.3" 5:1 3.8 7 45 lbs
White 14in 14" N/A 10" 7:1 3 5.3 62.5 lbs
White 16in 16" N/A 11" 7:1 2 4.5 70 lbs
White 18in 18" N/A 13" 7:1 1.8 3 77.5 lbs
White 20in 20" N/A 14" 7:1 1.3 2.6 87.5 lbs
White 22in 22" N/A N/A N/A N/A N/A N/A
White 24in 24" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
