GC26-12x16 Couplamatic Grip Crimp Coupling - JIC Seat - 90° Female Swivel - 3/4" Hose ID - 1-5/16x12 Thread Size

GC26-12x16 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x 1-5/16x12 Thread Size JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $22.17 Save $22.17
$55.43
$55.43 - $55.43
$55.43
$33.26
$33.26 - $33.26
$33.26

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel
Specifications for Variant SKU: GC26-12x16 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

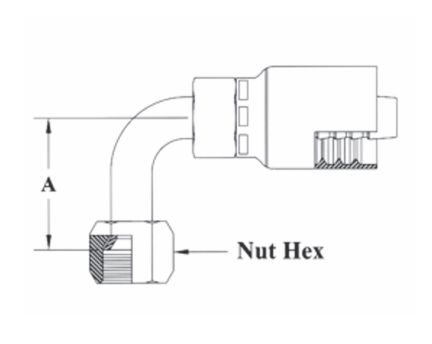

Part Number Hose ID Thread Size Tube OD A Drop Inches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC26-4x4 1/4" 7/16x20 1/4" 0.81" 9/16" 4G-4FJX90M 13943-4-4
GC26-4x5 1/4" 1/2x20 5/16" 0.83" 5/8" 4G-5FJX90M 13943-5-4
GC26-4x6* 1/4" 9/16x18 3/8" 0.91" 11/16" 4G-6FJX90M 13943-6-4
GC26-6x4 3/8" 7/16X20 1/4" 0.81" 9/16" - 13943-4-6
GC26-6x5 3/8" 1/2x20 5/16" 0.83" 5/8" - 13943-5-6
GC26-6x6* 3/8" 9/16x18 3/8" 0.91" 11/16" 6G-6FJX90M 13943-6-6
GC26-6x8 3/8" 3/4x16 1/2" 1.15" 7/8" 6G-8FJX90M 13943-8-6
GC26-8x8 1/2" 3/4x16 1/2" 1.15" 7/8" 8G-8FJX90M 13943-8-8
GC26-8x10 1/2" 7/8x14 5/8" 1.23" 1" 8G-10FJX90M 13943-10-8
GC26-10x10 5/8" 7/8x14 5/8" 1.23" 1" 10G-10FJX90S 13943-10-10
GC26-10x12* 5/8" 1-1/16x12 3/4" 1.88" 1-1/4" 10G-12FJX90S 13943-12-10
GC26-12x10 3/4" 7/8x14 5/8" 1.23" 1" 12G-10FJX90M 13943-10-12
GC26-12x12* 3/4" 1-1/16x12 3/4" 1.88" 1-1/4" 12G-12FJX90M 13943-12-12
GC26-12x16* 3/4" 1-5/16x12 1" 2.20" 1-1/2" - 13943-12-12
GC26-16x16* 1" 1-5/16x12 1" 2.20" 1-1/2" 16G-16FJX90M 13943-12-12
GC26-20x20 1-1/4" 1-5/8x12 1-1/4" 3.31" 2" 20G-20FJX90M 13943-20-20

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
