GC26-6x8 Couplamatic Grip Crimp Coupling - JIC/SAE Dual Seat - 90° Female Swivel - 3/8" Hose ID - 3/4x16 Thread Size

GC26-6x8 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 3/4x16 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $6.03

$54.24

$54.24 - $54.24

$54.24

$48.21

$48.21 - $48.21

$48.21

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: GC26-6x8 Couplamatic \| 5 \|
Series:	Grip Crimp Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 3/8in Hose Barb, 1/2in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

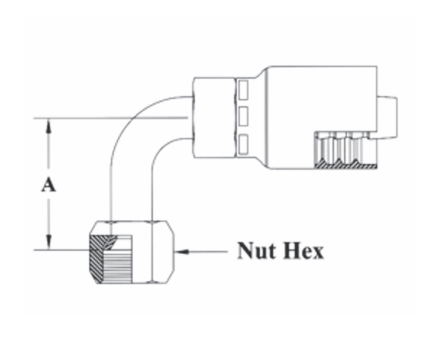

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Gates Mega	Parker 43
GC26-4x4	1/4"	7/16x20	1/4"	0.81"	9/16"	4G-4FJX90M	13943-4-4
GC26-4x5	1/4"	1/2x20	5/16"	0.83"	5/8"	4G-5FJX90M	13943-5-4
GC26-4x6*	1/4"	9/16x18	3/8"	0.91"	11/16"	4G-6FJX90M	13943-6-4
GC26-6x4	3/8"	7/16X20	1/4"	0.81"	9/16"	-	13943-4-6
GC26-6x5	3/8"	1/2x20	5/16"	0.83"	5/8"	-	13943-5-6
GC26-6x6*	3/8"	9/16x18	3/8"	0.91"	11/16"	6G-6FJX90M	13943-6-6
GC26-6x8	3/8"	3/4x16	1/2"	1.15"	7/8"	6G-8FJX90M	13943-8-6
GC26-8x8	1/2"	3/4x16	1/2"	1.15"	7/8"	8G-8FJX90M	13943-8-8
GC26-8x10	1/2"	7/8x14	5/8"	1.23"	1"	8G-10FJX90M	13943-10-8
GC26-10x10	5/8"	7/8x14	5/8"	1.23"	1"	10G-10FJX90S	13943-10-10
GC26-10x12*	5/8"	1-1/16x12	3/4"	1.88"	1-1/4"	10G-12FJX90S	13943-12-10
GC26-12x10	3/4"	7/8x14	5/8"	1.23"	1"	12G-10FJX90M	13943-10-12
GC26-12x12*	3/4"	1-1/16x12	3/4"	1.88"	1-1/4"	12G-12FJX90M	13943-12-12
GC26-12x16*	3/4"	1-5/16x12	1"	2.20"	1-1/2"	-	13943-12-12
GC26-16x16*	1"	1-5/16x12	1"	2.20"	1-1/2"	16G-16FJX90M	13943-12-12
GC26-20x20	1-1/4"	1-5/8x12	1-1/4"	3.31"	2"	20G-20FJX90M	13943-20-20

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
