GW53-20x20 Couplamatic GW Series Coupling - Code 61 Split Flange - 90° Bend - 1-1/4" Hose ID - 1-1/4" Flange Size

GW53-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

Save $38.56 Save $38.56
$96.40
$96.40 - $96.40
$96.40
$57.84
$57.84 - $57.84
$57.84

Couplamatic Systems Inc.
GW Series - Code 61 Split Flange - 90° Bend
Specifications for Variant SKU: GW53-20x20 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
GW Series — 100R12 No-Skive Spiral

GW53 GW Series — Code 61 Split Flange, 90° Elbow

GW53 is the Code 61 Split Flange, 90° Elbow configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly.
  • Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2

Which sizes are available?

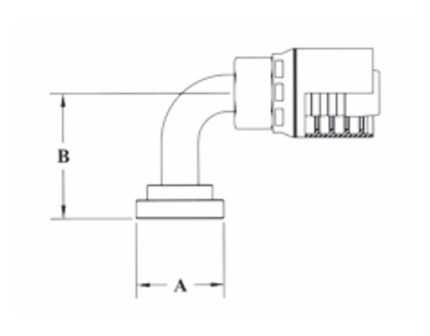

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Weatherhead 430U
GW53-8x8 1/2" 1/2" 1.19" 1.63" 43008U-G71
GW53-8x12 1/2" 3/4" 1.50" 1.68" 43008U-G72
GW53-12x12 3/4" 3/4" 1.50" 2.12" 43012U-G72
GW53-12x16 3/4" 1" 1.75" 2.12" 43012U-G76
GW53-16x16 1" 1" 1.75" 2.38" 43016U-G76
GW53-16x20 1" 1-1/4" 2.00" 2.38" 43016U-G80
GW53-20x20 1-1/4" 1-1/4" 2.00" 2.62" 43020U-G80
GW53-20x24 1-1/4" 1-1/2" 2.38" 3.25" 43020U-G84
GW53-24x24 1-1/2" 1-1/2" 2.38" 3.12" 43024U-G84
GW53-32x32 2" 2" 2.81" 4.64" 43032U-G92
3

Which hose does this coupling terminate?
4

Which additional sizes are available?
Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Weatherhead 430U
GW53-8x8 1/2" 1/2" 1.19" 1.63" 43008U-G71
GW53-8x12 1/2" 3/4" 1.50" 1.68" 43008U-G72
GW53-12x12 3/4" 3/4" 1.50" 2.12" 43012U-G72
GW53-12x16 3/4" 1" 1.75" 2.12" 43012U-G76
GW53-16x16 1" 1" 1.75" 2.38" 43016U-G76
GW53-16x20 1" 1-1/4" 2.00" 2.38" 43016U-G80
GW53-20x20 1-1/4" 1-1/4" 2.00" 2.62" 43020U-G80
GW53-20x24 1-1/4" 1-1/2" 2.38" 3.25" 43020U-G84
GW53-24x24 1-1/2" 1-1/2" 2.38" 3.12" 43024U-G84
GW53-32x32 2" 2" 2.81" 4.64" 43032U-G92
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
