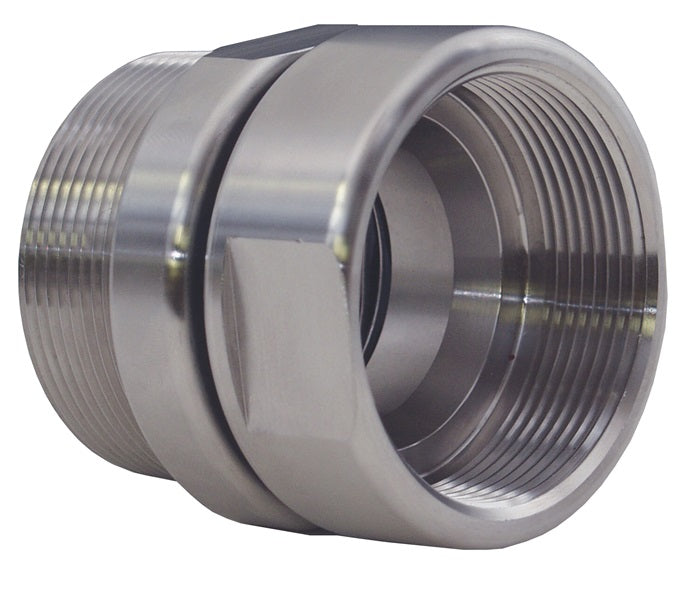

HS300SS MannTek by Dixon Valve | Hose Swivel | 3" Male NPT x 3" Female NPT | 316 Stainless Steel

Name: HS300SS MannTek by Dixon Valve | Hose Swivel | 3" Male NPT x 3" Female NPT | 316 Stainless Steel
Brand: Dixon
SKU: HS300SS Dixon
Price: 897.13 USD
Availability: InStock

Save $112.14

$1,009.27

$1,009.27 - $1,009.27

$1,009.27

$897.13

$897.13 - $897.13

$897.13

Dixon Valve
Tank Truck | MannTek Hose Swivel

Allows the hose to relax to its natural rest position while allowing freedom of movement without adding torque stress at the point of connection.

Quantity

Specifications for Variant SKU: HS300SS Dixon
Brand:	MannTek
Shape (Orientation):	Straight
Ends Configuration:	3in Male NPT, 3in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Viton/FKM

Features:
Simple design. Low maintenance.
Construction:
Consists of two body halves, ball bearings, and a washer.
Specifications:
Working pressure: 150 PSI. Maximum temperature: 300°F (149°C). Male NPT x female NPT threaded connections.

Aluminum Part	316 Stainless Steel Part	Male NPT x Female NPT Size
HS075SS	HS075AL	3/4"
HS100SS	HS100AL	1"
HS150SS	HS150AL	1-1/2"
HS200SS	HS200AL	2"
HS300SS	HS300AL	3"
HS400SS	HS400AL	4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
