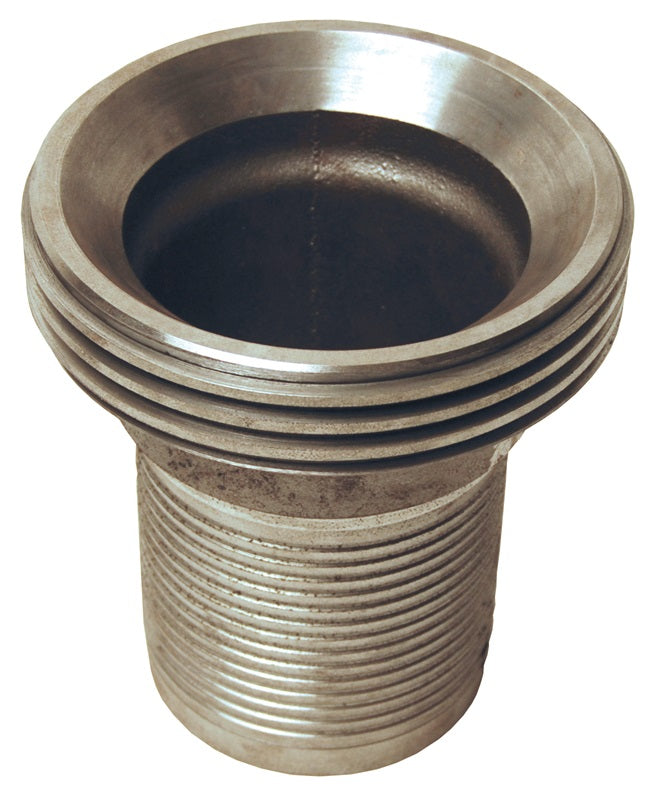

HUF206300CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 206 | Female Fitting | 3" Size | Iron

Save $12.30

$110.67

$110.67 - $110.67

$110.67

$98.37

$98.37 - $98.37

$98.37

Dixon Valve
Boss® | LPS Frac Fitting | Female Fitting

Used in the fast paced transfer of water and sand slurry at hydraulic fracturing sites.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HUF206300CS Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	3in Female Frac Fitting, 3in Hose Barb
Material(s):	Iron

Compatibility & Interchange Data:
Interchangeable with current fittings; phase them into your current operation. Designed to work with Dixon King Crimp Ferrules.
Features:
One-piece design eliminates leak path experienced with two-piece threaded systems. Durable and safe with reliable hose retention when crimped as specified.
Construction:
Machined Iron to ASTM standards. All stems are zinc plated.
Specifications:
400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF) 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF) 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 3" size uses standard crimp ferrules 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through CF400-16CSHD and heavy duty stems. NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.

Part Number	Size	Figure
HUF100300CS	3"	100
HUF206300CS	3"	206
HUF100400CS	4"	100
HUF206400CS	4"	206
HUFALL600CS*	6"	100/206
HUFALL800CS*	8"	100/206

* Meets both figure 100 and 206 dimensional specifications.
