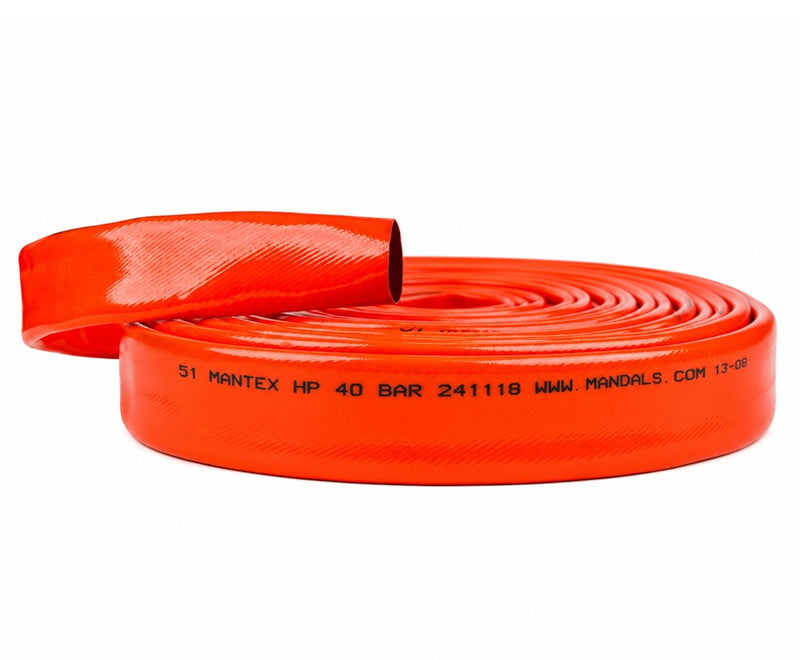

MANTEXHP-2.0-100 by Texcel | MANTEX HP Series | 2" Hose ID | 0.17 Wall Thickness | 2535 Burst PSI | Red

$19.42 - $1,618.71

$19.42

$13.87

$13.87 - $1,156.22

$13.87

Texcel
MANTEX HP Series | Lay-Flat Compressed air applications hose

Quantity

Specifications for Variant SKU: MANTEXHP-2.0-100 Texcel \| 100 \|
Series:	MANTEX HP Series
Hose Color(s):	Red
Internal Diameter:	2in

Mandals MANTEX HP \| High Pressure Compressed Air Hose
Mandals Mantex HP* is a compressed air hose designed to withstand higher working pressures, while offering a lightweight solution with ease of deployment and storage.*
APPLICATIONS COMPRESSED AIR WITHSTANDS HIGHER WORKING PRESSURES DESIGN Double jacket hose solution ensures high burst pressure, puncture resistance and flexibility High tensile polyester weaves covered and lined with an ultimate abrasion-resistant and oil-resistant thermoplastic polyurethane (TPU) FEATURES Light, yet rugged and hardwearing hose The low weight, combined with a high pressure rating, makes the hose popular and easy to use The hose does not stretch when pulled and has a very high pressure rating versus wall thickness Excellent abrasion resistance Double Jacket hose with TPU outer layer" inner layer covered with EPDM rubber ADVANTAGE Field-proven hose High working pressure of 635 PSI High Flexibility Coils easily for storage and transportation Max temperature up to +230F

ID	Part Number	Wall Thickness	Weight	Burst Pressure	Tensile Strength
2"	MANTEXHP-2.0-100	0.17"	0.55 lbs	2535 psi	31.7 lbs
3"	MANTEXHP-3.0-100	0.18"	0.83 lbs	1740 psi	46.6 lbs
NOTE: SAFETY BP/WP IS 2:1 (50%). FOR ALL NON-HAZARD AND/OR NON-FLAMMABLE LIQUIDS. NOTE: SAFETY FACTOR BP/WP IS 4:1 (25%) FOR COMPRESSED AIR. (ISO 7751:1991)

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
