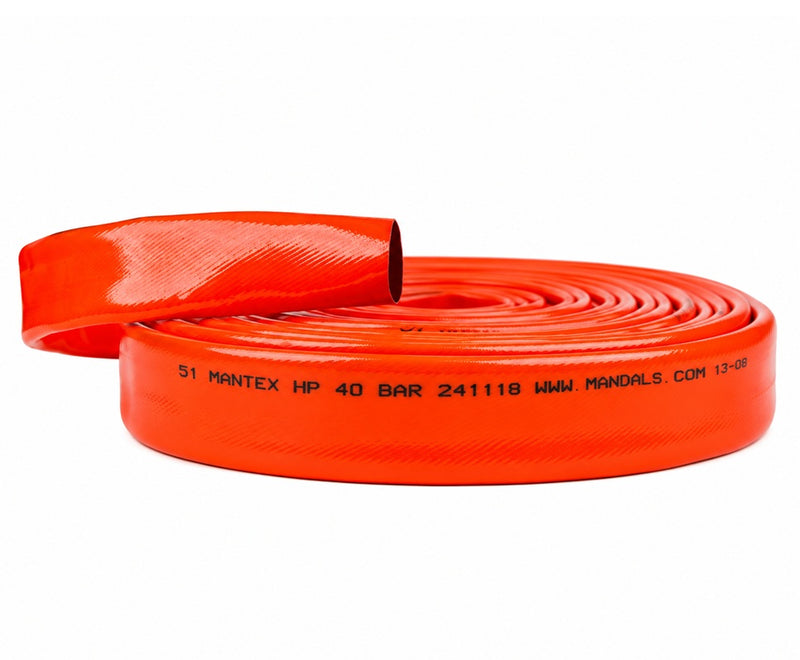

MANTEXHP-3.0-100 by Texcel | MANTEX HP Series | 3" Hose ID | 0.18" Wall Thickness | 1740 Burst PSI | Red

$28.21 - $2,351.13

$28.21

$20.15

$20.15 - $1,679.38

$20.15

Texcel
MANTEX HP Series | Lay-Flat Compressed air applications hose

Quantity

Specifications for Variant SKU: MANTEXHP-3.0-100 Texcel \| 100 \|
Series:	MANTEX HP Series
Hose Color(s):	Red
Internal Diameter:	3in

Air & Multipurpose Hose

Mandals Mantex HP High Pressure Air Hose

Mandals Mantex HP is a compressed air hose designed to withstand higher working pressures, while offering a lightweight solution with ease of deployment and storage.

1

What is this hose used for?

Compressed air
Higher working pressures

2

What are the key specifications?

Design

Double jacket hose ensures high burst pressure, puncture resistance and flexibility

Construction

High tensile polyester weaves covered and lined with an abrasion- and oil-resistant thermoplastic polyurethane (TPU); TPU outer layer, inner layer covered with EPDM rubber

Max Working Pressure

435 psi

Maximum Temperature

Up to +230°F

3

What are the main product features?

Light, yet rugged and hardwearing.
Low weight combined with a high pressure rating makes the hose popular and easy to use.
Does not stretch when pulled, with a very high pressure rating versus wall thickness.
Excellent abrasion resistance.
Field-proven hose.
High flexibility.
Coils easily for storage and transportation.

4

Which sizes are available?

Part Number	Hose ID	Wall Thickness (in)	Weight (lbs/ft)	Burst Pressure (psi)	Tensile Strength (lbs)
MANTEXHP-2.0-100	2"	0.17	0.55	2535	31,700
MANTEXHP-3.0-100	3"	0.18	0.83	1740	46,600

i

Safety factor BP/WP is 2:1 (50%) for all non-hazardous and/or non-flammable liquids.
Safety factor BP/WP is 4:1 (25%) for compressed air (ISO 7751:1991).
