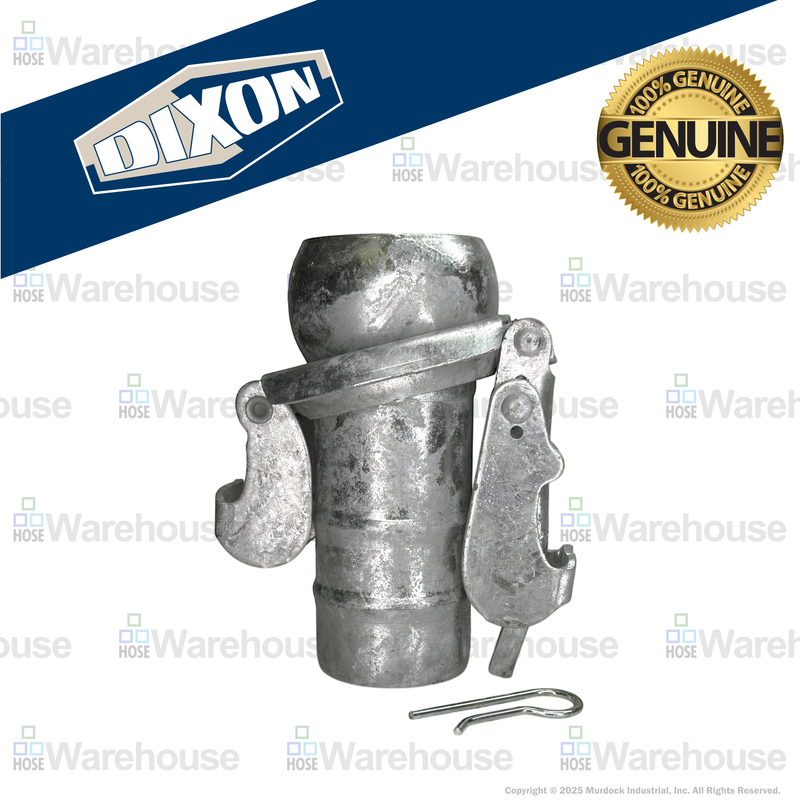

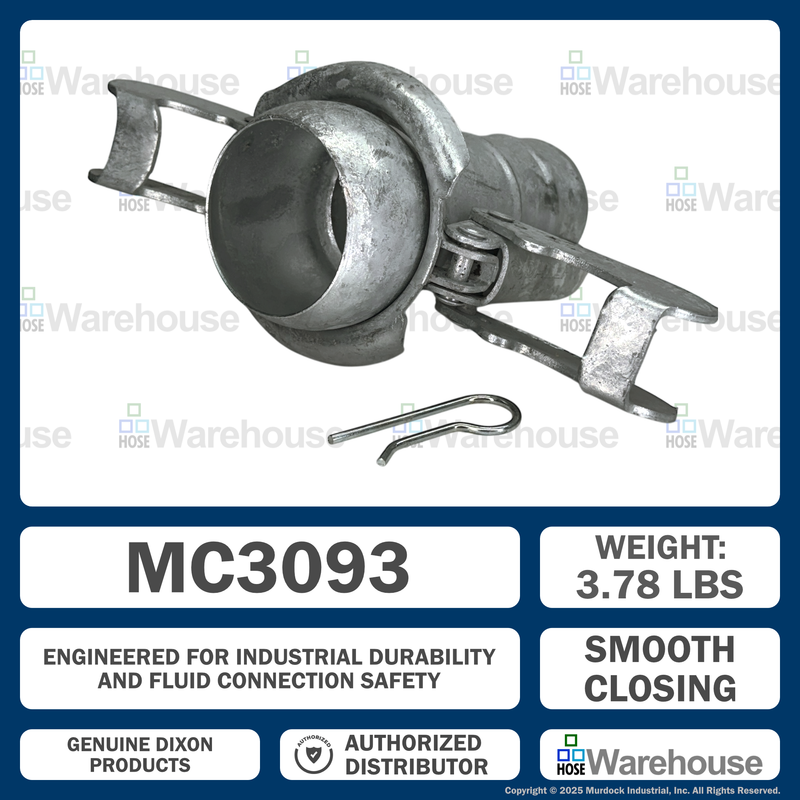

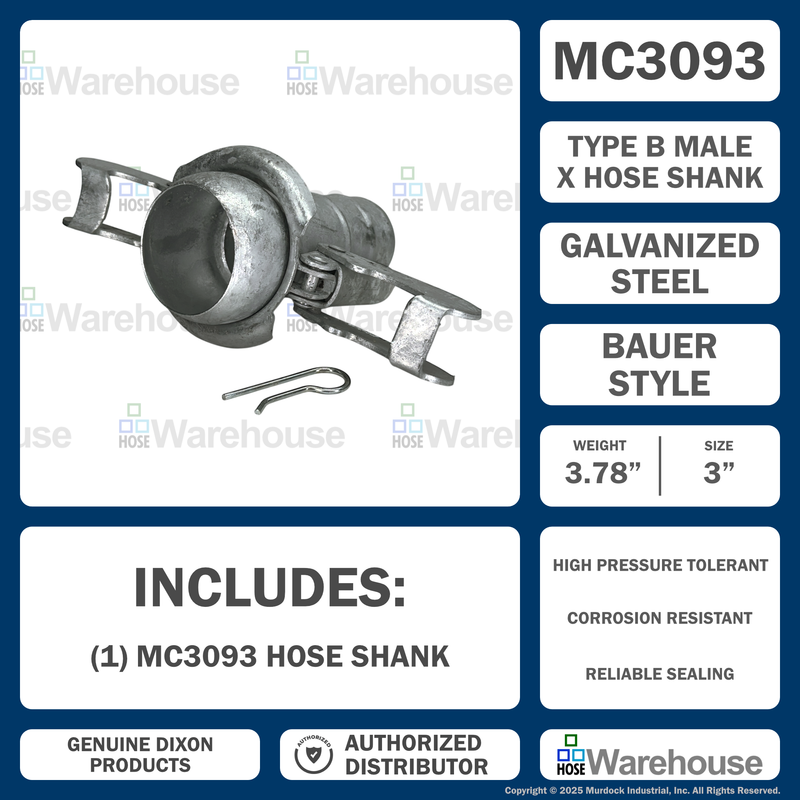

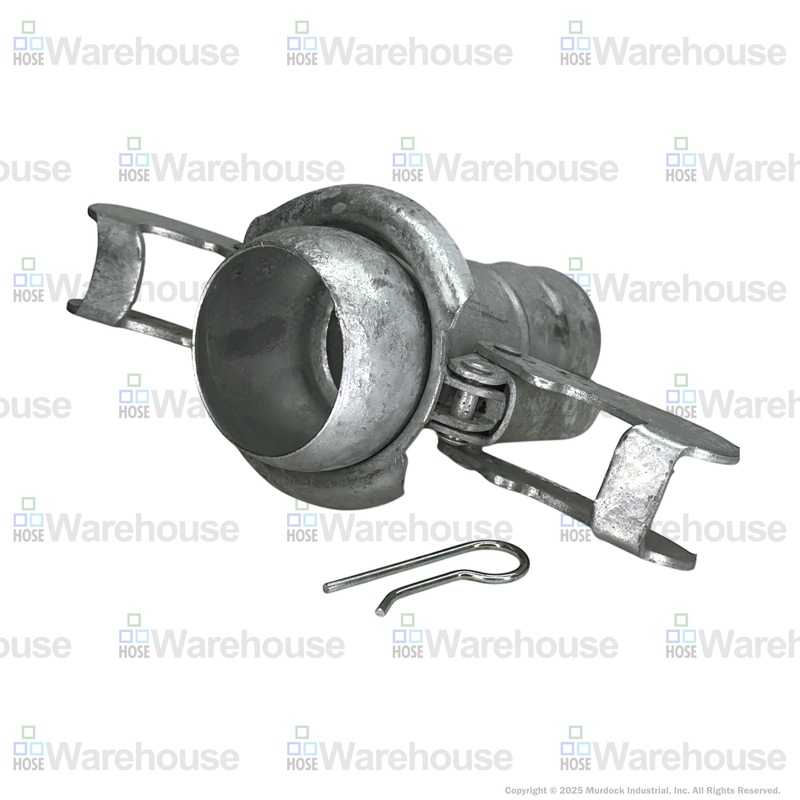

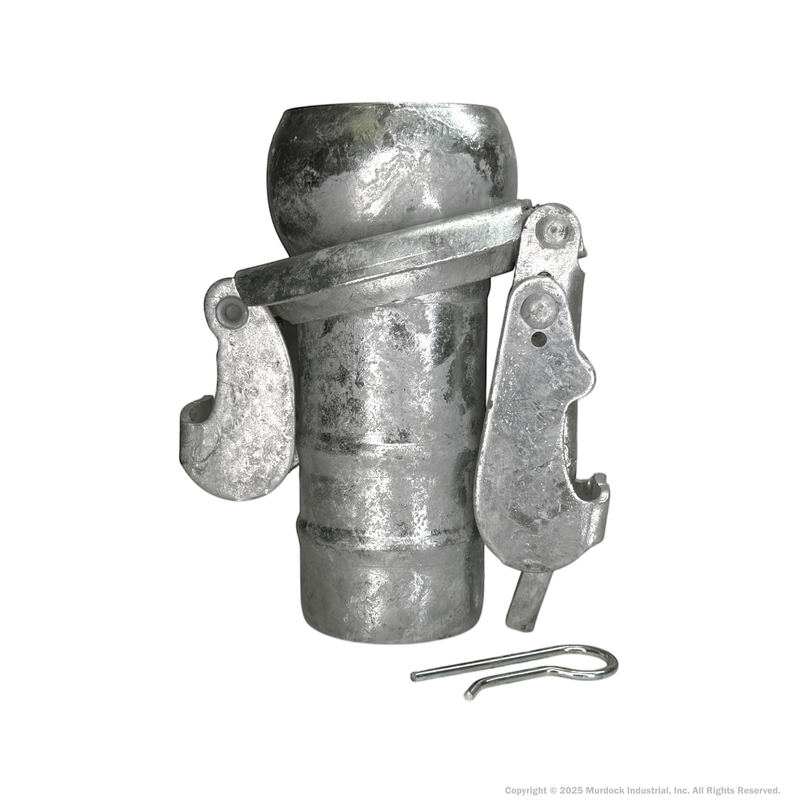

MC3093 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 3" Size | Male with Hose Barb | Galvanized Steel

MC3093 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 3" Size | Male with Hose Barb | Galvanized Steel

Name: MC3093 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 3" Size | Male with Hose Barb | Galvanized Steel
Brand: Dixon
SKU: MC3093 Dixon
Price: 44.64 USD
Availability: InStock

Save $29.76

$74.40

$74.40 - $74.40

$74.40

$44.64

$44.64 - $44.64

$44.64

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Male with Hose Barb

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: MC3093 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3in Male Bauer - Type B, 3in Hose Barb
Material(s):	Galvanized Steel

Features:
Bauer style locks on the male side. Has a double pin locking lever for smooth closing action. Gasket included on female half. Each coupler is equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| Male with Hose Barb

Part Number	Description
MC3092	2"
MC3093	3"
MC3094	4"
MC3096	6"
MC3098	8"
MC30910*	10"
MC30912*	12"

*10" and 12" supplied with ACB304 lever assist bar

Type B (Bauer-Lock) \| Female with Hose Barb

Part Number	Size
FC3102	2"
FC3103	3"
FC3104	4"
FC3106	6"
FC3108	8"
FC31010	10"
FC31012	12"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
