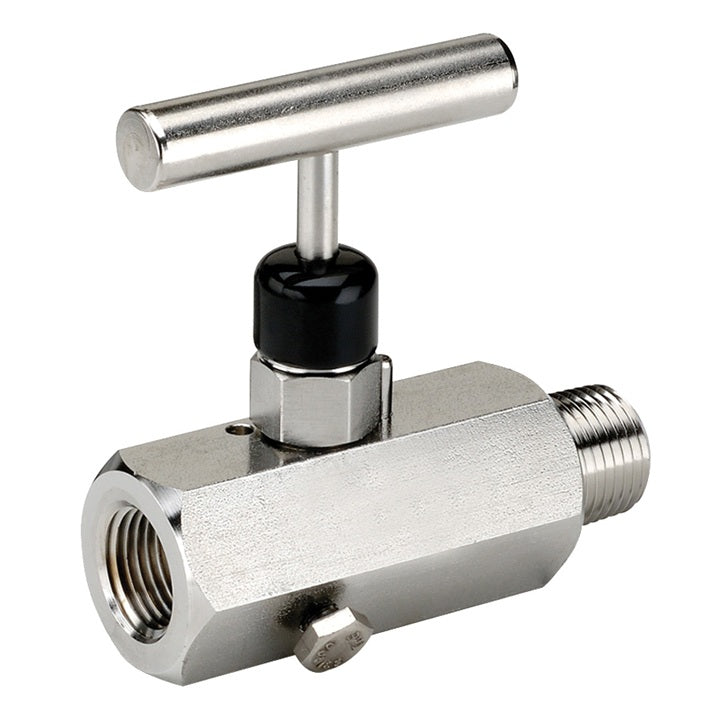

MFS702 by Dixon Valve | Block and Bleed Needle Valve | T Design Handle | Soft Seat | 1/4" Male NPT x 1/4" Female NPT | 316 Stainless Steel

Save $22.21

$199.86

$199.86 - $199.86

$199.86

$177.65

$177.65 - $177.65

$177.65

Dixon Valve & Coupling
Block and Bleed Needle Valves

Allows pressure to be bled off without disturbing the permanent piping installation allowing quick and easy removal or replacement of instruments.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MFS702 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	FKM

Features:
FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling. Stem threads are rolled for strength and ease of operation. 0.090" bleed hole located on bottom is controlled by a 1/4"-20 UNF-2A bleed screw.
Materials:
Stems: 316 stainless steel
Specifications:
Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI. Orifice size is 0.187", flow coefficient: 0.44.

Part Number	Material	NPT Size	Handle Style	PSI @ 200°F
Hard Seat Male NPT to Female NPT
MFC602	Zinc Nickel Plated Steel	1/4-18	T Design Handle	10000 PSI
MFC604	Zinc Nickel Plated Steel	1/2-14	T Design Handle	10000 PSI
MFS602	316 Stainless Steel	1/4-18	T Design Handle	10000 PSI
MFS604	316 Stainless Steel	1/2-14	T Design Handle	10000 PSI
Soft Seat Male NPT to Female NPT
MFC702	Zinc Nickel Plated Steel	1/4-18	T Design Handle	6000 PSI
MFC704	Zinc Nickel Plated Steel	1/2-14	T Design Handle	6000 PSI
MFS702	316 Stainless Steel	1/4-18	T Design Handle	6000 PSI
MFS704	316 Stainless Steel	1/2-14	T Design Handle	6000 PSI
