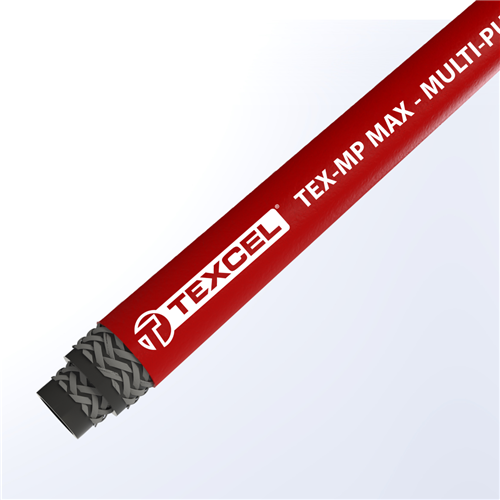

MP-MAX-10-R300-600R by Texcel | TEX-MP MAX Series | Non-Conductive Multi-Purpose Air Hose | 5/8" Hose ID | 300 PSI | Red | 600ft Length

Save $482.65

$1,689.27

$1,689.27 - $1,689.27

$1,689.27

$1,206.62

$1,206.62 - $1,206.62

$1,206.62

Texcel
TEX-MP MAX Series | Non-Conductive Multi-Purpose Air Hose

Package Quantity: 600 Units

Specifications for Variant SKU: MP-MAX-10-R300-600R Texcel \| 600 \|
Series:	TEX-MP MAX Series
Hose Color(s):	Red
Internal Diameter:	0.625in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile/PVC Blend

Technical Data:
Description:	Premium quality multi-purpose hose for applications calling for maximum oil resistance and higher working pressures. Tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleum-based products. Non-Conductive construction makes it suitable for applications where electrical exposure and contact with high voltage may be encountered.	Tube:	Black, NBR (ARPM Class A)
Cover:	Red, NBR/PVC (ARPM Class A)	Reinforcement:	Braided polyester cords
Safety Factor:	3:1	Temperature:	-20°F to +180°F
Branding:	TEXCEL® MP MAX - NON-CONDUCTIVE MULTIPURPOSE HOSE - 300PSI WP (2.07MPa) -LOT

Part Number	Package Type	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Lbs./ft
MP-MAX-4-R300-600R	Reel	1/4"	36/64"	600'	300	0.13 lbs
MP-MAX-6-R300-600R	Reel	3/8"	46/64"	600'	300	0.22 lbs
MP-MAX-8-R300-600R	Reel	1/2"	56/64"	600'	300	0.31 lbs
MP-MAX-10-R300-600R	Reel	5/8"	-	600'	300	-
MP-MAX-12-R300-600R	Reel	3/4"	1-14/64"	600'	300	0.48 lbs
MP-MAX-16-R300-400R	Reel	1"	1-28/64"	400'	300	0.66 lbs
MP-MAX-20-R300-300R	Reel	1-1/4"	1-48/64"	300'	300	0.69 lbs
MP-MAX-24-R300-250R	Reel	1-1/2"	2"	250'	300	0.80 lbs
MP-MAX-32-R250-200R	Reel	2"	2-38/64"	200'	250	1.54 lbs
