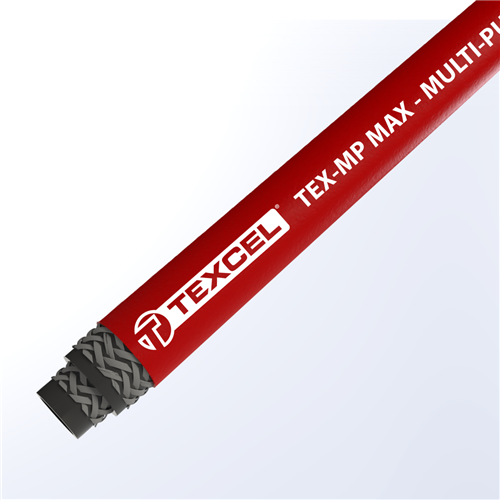

MP-MAX-6-R300-600R by Texcel | TEX-MP MAX Series | Non-Conductive Multi-Purpose Air Hose | 3/8" Hose ID | 300 PSI | Red | 600ft Length

Save $249.96

$874.87

$874.87 - $874.87

$874.87

$624.91

$624.91 - $624.91

$624.91

Texcel
TEX-MP MAX Series | Non-Conductive Multi-Purpose Air Hose

Package Quantity: 600 Units

Specifications for Variant SKU: MP-MAX-6-R300-600R Texcel \| 600 \|
Series:	TEX-MP MAX Series
Hose Color(s):	Red
Internal Diameter:	0.375in
Outer Diameter:	0.72in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile/PVC Blend

Air & Multipurpose Hose

TEX-MP MAX Non-Conductive Multi-Purpose Air Hose

Premium quality multi-purpose hose for applications calling for maximum oil resistance and higher working pressures.

1

The tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleum-based products.

2

Tube

Black, NBR (ARPM Class A)

Cover

Red, NBR/PVC (ARPM Class A)

Reinforcement

Braided polyester cords

Temperature Range

-20°F to +180°F

Safety Factor

3:1

Branding

TEXCEL® MP MAX - NON-CONDUCTIVE MULTIPURPOSE HOSE - 300PSI WP (2.07MPa) - LOT

3

Non-conductive construction — suitable for applications where electrical exposure and contact with high voltage may be encountered.

4

Part Number	Package	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Weight (lbs/ft)
MP-MAX-4-R300-600R	Reel	1/4"	36/64"	600'	300	0.13
MP-MAX-6-R300-600R	Reel	3/8"	46/64"	600'	300	0.22
MP-MAX-8-R300-600R	Reel	1/2"	56/64"	600'	300	0.31
MP-MAX-10-R300-600R	Reel	5/8"	—	600'	300	—
MP-MAX-12-R300-600R	Reel	3/4"	1-14/64"	600'	300	0.48
MP-MAX-16-R300-400R	Reel	1"	1-28/64"	400'	300	0.66
MP-MAX-20-R300-300R	Reel	1-1/4"	1-48/64"	300'	300	0.69
MP-MAX-24-R300-250R	Reel	1-1/2"	2"	250'	300	0.80
MP-MAX-32-R250-200R	Reel	2"	2-38/64"	200'	250	1.54
