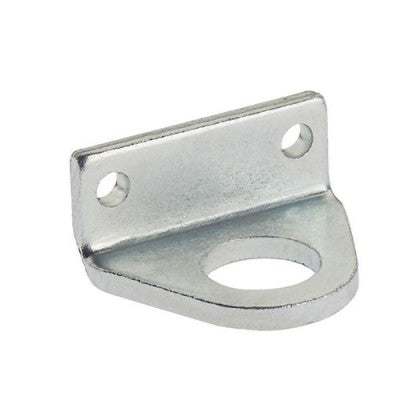

MPD012 by AIGNEP | Cyl Accessories Series | Nose Foot Mount CS | Ø12 -16

Save $0.37 Save $0.37
Original price $3.66
Original price $3.66 - Original price $3.66
Original price $3.66
Current price $3.29
$3.29 - $3.29
Current price $3.29
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MPD012 AIGNEP
Series: Cyl Accessories Series

Nose Mount

Component Specifications

Body Material: Stainless Steel

Product Number Bore A B C D G H J R S
MPD008 8-10 12mm 4,5mm 35mm 25mm 11mm 16mm 16mm 10mm 3mm
MPD012 12-16 16mm 5,5mm 42mm 32mm 14mm 20mm 20mm 13,5mm 4mm
MPD020 20-25 22mm 6,6mm 54mm 40mm 17mm 25mm 25mm 18mm 5mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
