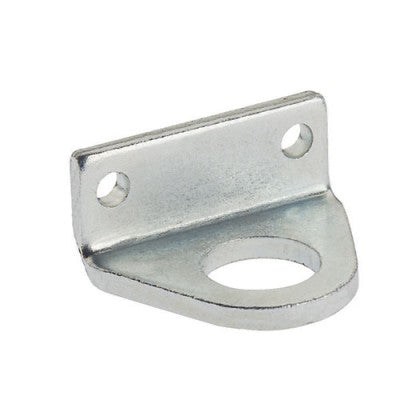

MPD020 AIGNEP | Cyl Accessories Series | Nose Foot Mount CS Ø20|25

MPD020 by AIGNEP | Cyl Accessories Series | Nose Foot Mount CS | Ø20 -25

Name: MPD020 by AIGNEP | Cyl Accessories Series | Nose Foot Mount CS | Ø20 -25
Brand: AIGNEP
SKU: MPD020 AIGNEP
Price: 3.73 USD
Availability: InStock

Save $2.49

$6.22

$6.22 - $6.22

$6.22

$3.73

$3.73 - $3.73

$3.73

Specifications for Variant SKU: MPD020 AIGNEP
Series:	Cyl Accessories Series

Nose Mount

Component Specifications

Body Material: Stainless Steel

Bore	A	B	C	D	G	H	J	R	S
MPD008	8-10	12mm	4,5mm	35mm	25mm	11mm	16mm	16mm	10mm	3mm
MPD012	12-16	16mm	5,5mm	42mm	32mm	14mm	20mm	20mm	13,5mm	4mm
MPD020	20-25	22mm	6,6mm	54mm	40mm	17mm	25mm	25mm	18mm	5mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
