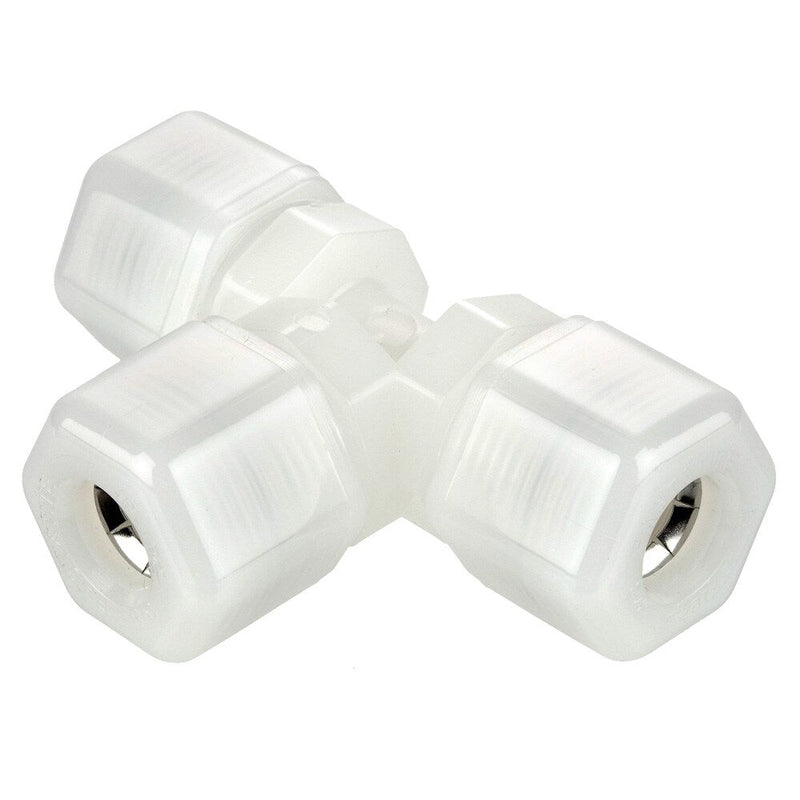

N10TU6 by Parker | Tube to Tube Fitting | 5/8" Tube OD x 3/8" Tube OD | 1-1/8" Hex | 3.36" Length | Tee | Natural | Nylon

Parker Fluid System Connectors Division

Save $10.59

$26.47

$26.47 - $26.47

$26.47

$15.88

$15.88 - $15.88

$15.88

by Parker Hannifin
Fast & Tite® Fittings:TU - Tee Union

Specifications for Variant SKU: N10TU6 Parker
Brand:	Fast & Tite®
Series:	TU Series
Shape (Orientation):	Tee
Material(s):	Nylon, 302 Stainless Steel
Special Properties:	Food Grade

Black PPL Part No.	White Nylon Part No.	Nom. Tube O.D.	C Hex	M	N	Flow Dia. D
P4TU4	N4TU4	1/4	11/16	1.09	1.09	.170
P5TU5	N5TU5	5/16	11/16	1.09	1.09	.187
P6TU6	N6TU6	3/8	13/16	1.30	1.30	.250
P8TU6	N8TU6	1/2 - 3/8	1	1.46	1.39	.250
P8TU8	N8TU8	1/2	1	1.46	1.46	.375
P10TU6	N10TU6	5/8 - 3/8	1-1/8	1.68	1.46	.250
P10TU10	N10TU10	5/8	1-3/16	1.68	1.68	.500

Product Features:

Available in black polypropylene and white nylon

White polypropylene available as a non-standard part

302 stainless steel grab ring

Nitrile O-ring

FDA compliant material

NSF/ANSI-51

Water Filtration

Beverage Dispensing

Life Science

Bottling

Semi-Conductor

Applications:

Water

End-of-Arm Tooling

Beverages

Food

Cooling Systems

Vacuum

Temperature Range:

0° to +200° F (-17.8° to +93.3° C)

Compatible Tubing:

Thermoplastic

Soft Metal

Glass

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
