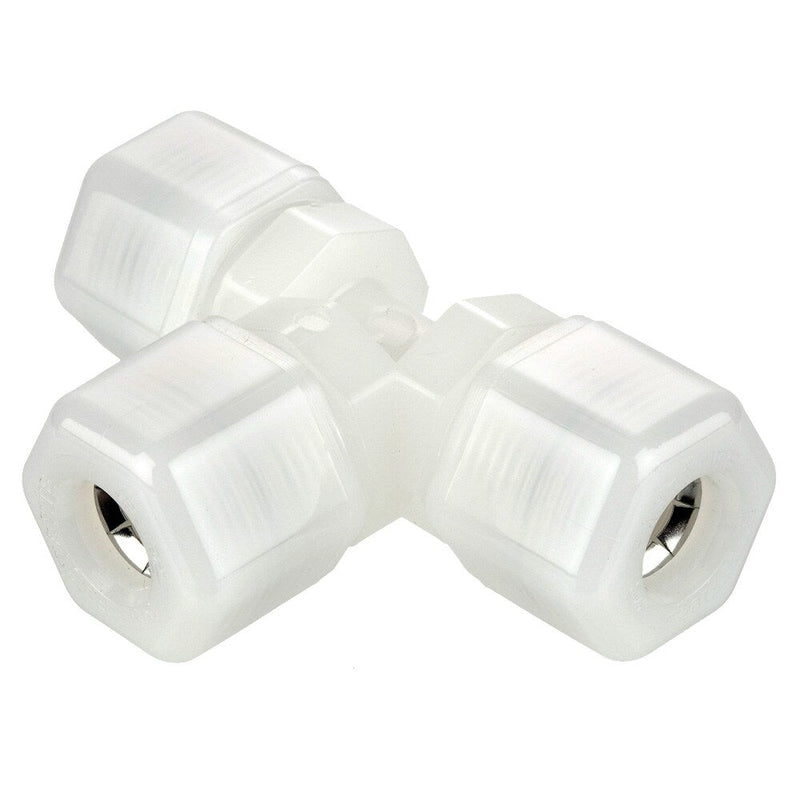

N6TU6 by Parker | Tube to Tube Fitting | 3/8" Tube OD | 13/16" Hex | 2.60" Length | Tee | Natural | Nylon

Parker Fluid System Connectors Division

Save $5.08

$9.57

$9.57 - $9.57

$9.57

$4.49

$4.49 - $4.49

$4.49

by Parker Hannifin
Fast & Tite® Fittings:TU - Tee Union

Specifications for Variant SKU: N6TU6 Parker
Brand:	Fast & Tite®
Series:	TU Series
Shape (Orientation):	Tee
Material(s):	Nylon, 302 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade

Black PPL Part No.	White Nylon Part No.	Nom. Tube O.D.	C Hex	M	N	Flow Dia. D
P4TU4	N4TU4	1/4	11/16	1.09	1.09	.170
P5TU5	N5TU5	5/16	11/16	1.09	1.09	.187
P6TU6	N6TU6	3/8	13/16	1.30	1.30	.250
P8TU6	N8TU6	1/2 - 3/8	1	1.46	1.39	.250
P8TU8	N8TU8	1/2	1	1.46	1.46	.375
P10TU6	N10TU6	5/8 - 3/8	1-1/8	1.68	1.46	.250
P10TU10	N10TU10	5/8	1-3/16	1.68	1.68	.500

Product Features:

Available in black polypropylene and white nylon

White polypropylene available as a non-standard part

302 stainless steel grab ring

Nitrile O-ring

FDA compliant material

NSF/ANSI-51

Water Filtration

Beverage Dispensing

Life Science

Bottling

Semi-Conductor

Applications:

Water

End-of-Arm Tooling

Beverages

Food

Cooling Systems

Vacuum

Temperature Range:

0° to +200° F (-17.8° to +93.3° C)

Compatible Tubing:

Thermoplastic

Soft Metal

Glass
