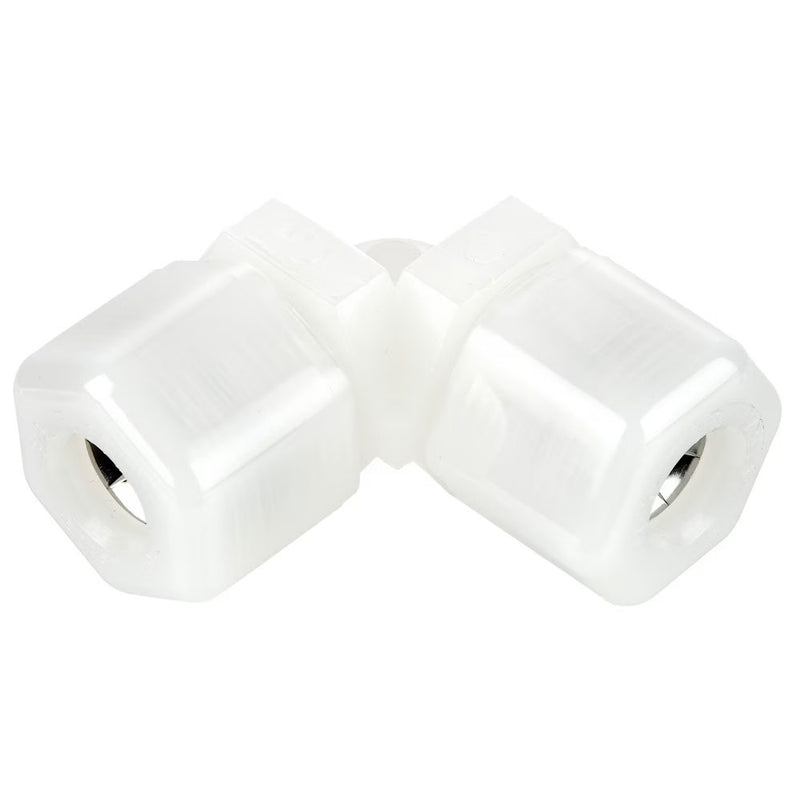

N6EU6 by Parker | Tube to Tube Fitting | 3/8" Tube OD | 7/8" Hex | 90° Elbow | Natural | Nylon

Save $2.39

$5.98

$5.98 - $5.98

$5.98

$3.59

$3.59 - $3.59

$3.59

by Parker Hannifin
Fast & Tite® Fittings:EU - Elbow Union

Specifications for Variant SKU: N6EU6 Parker
Brand:	Fast & Tite®
Series:	EU Series
Shape (Orientation):	90° Elbow
Material(s):	Nylon, 302 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade


Product Features:	Available in black polypropylene and white nylon White polypropylene available as a non-standard part 302 stainless steel grab ring Nitrile O-ring FDA compliant material NSF/ANSI-51
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water End-of-Arm Tooling Beverages Food Cooling Systems Vacuum
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Thermoplastic Soft Metal Glass


Black PPL Part No.	White Nylon Part No.	Nom. Tube O.D.	C Hex	M	N	Flow Dia. D
P4EU4	N4EU4	1/4"	3/4"	1.06	1.06	.170
P5EU4	-	5/16-1/4"	3/4"	1.06	1.06	.170
P5EU5	N5EU5	5/16"	3/4"	1.06	1.06	.193
P6EU4	N6EU4	3/8-1/4"	7/8"	1.06	1.28	.170
P6EU5	-	3/8-5/16"	7/8"	1.06	1.28	.170
P6EU6	N6EU6	3/8"	7/8"	1.28	1.28	.250
P8EU6	N8EU6	1/2-3/8"	1-1/16"	1.37	1.56	.250
P8EU8	N8EU8	1/2"	1-1/16"	1.56	1.56	.375
P10EU10	N10EU10	5/8"	1-3/16"	1.72	1.72	.500
