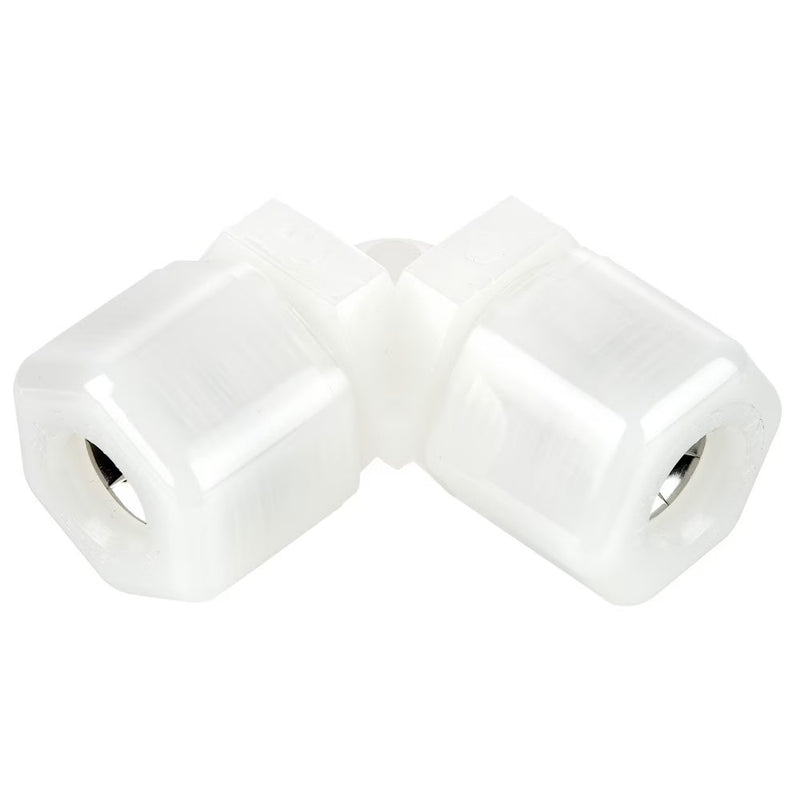

N8EU6 by Parker | Tube to Tube Fitting | 1/2" Tube OD x 3/8" Tube OD | 1-1/16" Hex | 90° Elbow | Natural | Nylon

Save $2.51

$6.28

$6.28 - $6.28

$6.28

$3.77

$3.77 - $3.77

$3.77

by Parker Hannifin
Fast & Tite® Fittings:EU - Elbow Union

Specifications for Variant SKU: N8EU6 Parker
Brand:	Fast & Tite®
Series:	EU Series
Shape (Orientation):	90° Elbow
Material(s):	Nylon, 302 Stainless Steel
Special Properties:	Food Grade


Product Features:	Available in black polypropylene and white nylon White polypropylene available as a non-standard part 302 stainless steel grab ring Nitrile O-ring FDA compliant material NSF/ANSI-51
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water End-of-Arm Tooling Beverages Food Cooling Systems Vacuum
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Thermoplastic Soft Metal Glass


Black PPL Part No.	White Nylon Part No.	Nom. Tube O.D.	C Hex	M	N	Flow Dia. D
P4EU4	N4EU4	1/4"	3/4"	1.06	1.06	.170
P5EU4	-	5/16-1/4"	3/4"	1.06	1.06	.170
P5EU5	N5EU5	5/16"	3/4"	1.06	1.06	.193
P6EU4	N6EU4	3/8-1/4"	7/8"	1.06	1.28	.170
P6EU5	-	3/8-5/16"	7/8"	1.06	1.28	.170
P6EU6	N6EU6	3/8"	7/8"	1.28	1.28	.250
P8EU6	N8EU6	1/2-3/8"	1-1/16"	1.37	1.56	.250
P8EU8	N8EU8	1/2"	1-1/16"	1.56	1.56	.375
P10EU10	N10EU10	5/8"	1-3/16"	1.72	1.72	.500

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
