P-3V-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | MIL-C-51234 Coupler Seal Kit | For 3/8" Body Size | EPDM Seal

P-3V-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | MIL-C-51234 Coupler Seal Kit | For 3/8" Body Size | EPDM Seal

Save $0.40 Save $0.40
$3.60
$3.60 - $3.60
$3.60
$3.20
$3.20 - $3.20
$3.20

Dixon Valve & Coupling

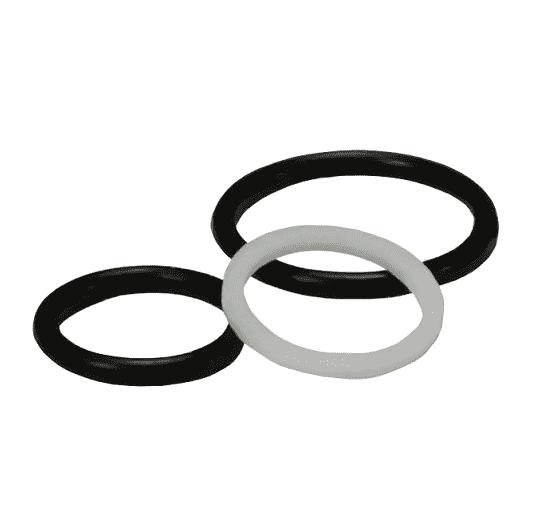

Hydraulic Coupling: V-Series MIL-C-51234 Coupler Seal Kit

Seal Kit Contents: Body/Adapter O-Rings and PTFE Back-Up.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: P-3V-SKIT Dixon
Series: V-Series
Seal Material(s): EPDM
Compatibility & Interchange:
  • Interchangeable to MIL-C-51234
  • Snap-Tite H/IH and Faster TNV/TNL
Additional Information:
Part Number Fits Body Size Seal Material Seal Kit Contents
2V-SKIT 1/4" Nitrile Body/adapter O-rings and PTFE back-up
F-2V-SKIT 1/4" FKM Body/adapter O-rings and PTFE back-up
P-2V-SKIT 1/4" EPDM Body/adapter O-rings and PTFE back-up

3V-SKIT 3/8" Nitrile Body/adapter O-rings and PTFE back-up
F-3V-SKIT 3/8" FKM Body/adapter O-rings and PTFE back-up
P-3V-SKIT 3/8" EPDM Body/adapter O-rings and PTFE back-up

4V-SKIT 1/2" Nitrile Body/adapter O-rings and PTFE back-up
F-4V-SKIT 1/2" FKM Body/adapter O-rings and PTFE back-up
P-4V-SKIT 1/2" EPDM Body/adapter O-rings and PTFE back-up

6V-SKIT 3/4" Nitrile Body/adapter O-rings and PTFE back-up
F-6V-SKIT 3/4" FKM Body/adapter O-rings and PTFE back-up
P-6V-SKIT 3/4" EPDM Body/adapter O-rings and PTFE back-up

8V-SKIT 1" Nitrile Body/adapter O-rings and PTFE back-up
F-8V-SKIT 1" FKM Body/adapter O-rings and PTFE back-up
P-8V-SKIT 1" EPDM Body/adapter O-rings and PTFE back-up

10V-SKIT 1-1/4" Nitrile Body/adapter/valve O-rings and back-up
F-10V-SKIT 1-1/4" FKM Body/adapter/valve O-rings and back-up
P-10V-SKIT 1-1/4" EPDM Body/adapter/valve O-rings and back-up

12V-SKIT 1-1/2" Nitrile Body/adapter/valve O-rings and back-up
F-12V-SKIT 1-1/2" FKM Body/adapter/valve O-rings and back-up
P-12V-SKIT 1-1/2" EPDM Body/adapter/valve O-rings and back-up

16V-SKIT 2" Nitrile Body/adapter/valve O-rings and back-up
F-16V-SKIT 2" FKM Body/adapter/valve O-rings and back-up
P-16V-SKIT 2" EPDM Body/adapter/valve O-rings and back-up
