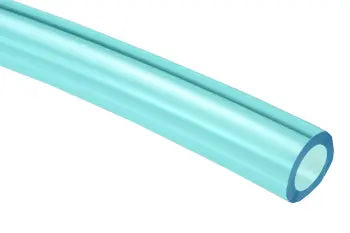

PT0606-500TB by Coilhose | Tubing | 3/8" OD x 1/4" ID | .062" Wall Thickness | Transparent Blue | Polyurethane | 500ft

Save $51.12

$460.06

$460.06 - $460.06

$460.06

$408.94

$408.94 - $408.94

$408.94

Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 3/8" OD x 1/4" ID

Quantity

Specifications for Variant SKU: PT0606-500TB Coilhose
Hose Color(s):	Blue
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 100ft Length	Part Number 500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0606-100W	PT0606-500W	White	3/8" x 1/4"	0.062"	170 PSI
PT0606-100Y	PT0606-500Y	Yellow
PT0606-100TY	PT0606-500TY	Transparent Yellow
PT0606-100TR	PT0606-500TR	Transparent Red
PT0606-100TC PT0606-100TCD*	PT0606-500TC	Transparent Clear
PT0606-100K PT0606-100KD*	PT0606-500K	Black
PT0606-100B	PT0606-500B	Blue
PT0606-100X	PT0606-500X	Gray
PT0606-100G	PT0606-500G	Green
PT0606-100Q	PT0606-500Q	Orange
PT0606-100R	PT0606-500R	Red
PT0606-100TB PT0606-100TBD*	PT0606-500TB	Transparent Blue

* Comes in Dispenser Box
