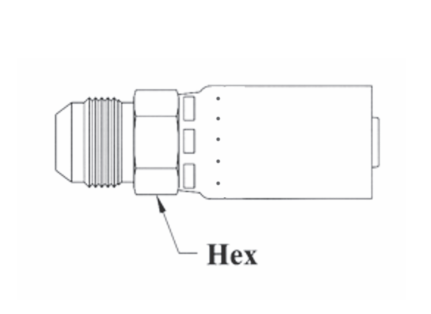

R508-16X16 Couplamatic R5 Series Coupling - JIC 37° - Male Solid - 7/8" Hose ID - 1-5/16x12 Thread Size

R508-16X16 by Couplamatic | R5 Series Coupling | 7/8" Hose ID x 1-5/16x12 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 5

Save $110.24 Save $110.24
$275.60
$275.60 - $275.60
$275.60
$165.36
$165.36 - $165.36
$165.36

Couplamatic Systems Inc.
R5 Series - JIC 37° - Male Solid

Package Quantity: 5 EA

Specifications for Variant SKU: R508-16X16 Couplamatic | 5 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 7/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
R5 Series — Textile Cover Hose

R508 R5 Series — JIC 37°, Male Solid, Straight

R508 is the JIC 37°, Male Solid, Straight configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.

1

What are the main product features?
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating
  • Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
  • Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R508-4X4 3/16" 1/4" 7/16x20 9/16" 06904E-504
R508-5X5 1/4" 5/16" 1/2x20 9/16" 06905E-505
R508-6X6 5/16" 3/8" 9/16x18 5/8" 06906E-506
R508-8X8 13/32" 1/2" 3/4x16 7/8" 06908E-508
R508-10X10 1/2" 5/8" 7/8x14 15/16" 06910E-510
R508-16X16 7/8" 1" 1-5/16x12 1-3/8" 06916E-516

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
