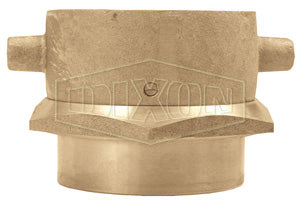

SF150S Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - 1-1/2" Female NPSH x 1-1/2" Female NPT

Name: SF150S Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - 1-1/2" Female NPSH x 1-1/2" Female NPT
Brand: Dixon
SKU: SF150S Dixon
Price: 97.84 USD
Availability: InStock

Save $8.23

$106.07

$106.07 - $106.07

$106.07

$97.84

$97.84 - $97.84

$97.84

Dixon Fire Fittings
(Open Snoot) Brass Female Swivel Adapters - Female Swivel x Female Rigid - Pin Lug - Cast Brass

Quantity

Specifications for Variant SKU: SF150S Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female NPSM, 1-1/2in Female NPT
Material(s):	Brass

Features:
Double female rigid hexagon to swivel connection, rigid end thread is always NPT, hose thread is on swivel end. Finishes: -P polished, -C polished chrome plated.

Part Number	Female Swivel Thread	Female Rigid Thread	Weight (Lbs.)
SF150F	1-1/2" Female NST(NH)	1-1/2" Female NPT	1.1100
SF150S	1-1/2" Female NPSH	1-1/2" Female NPT	1.1600
SF25F15T	2-1/2" Female NST(NH)	1-1/2" Female NPT	3.76
SF25F20T	2-1/2" Female NST(NH)	2" Female NPT	2.0500
SF250NYFD	2-1/2" Female NYFD	2-1/2" Female NPT	3.5800
SF250F	2-1/2" Female NST(NH)	2-1/2" Female NPT	2.2500
SF250F-P	2-1/2" Female NST(NH)	2-1/2" Female NPT	2.8450
SF250F-C	2-1/2" Female NST(NH)	2-1/2" Female NPT	2.8550
SF250S	2-1/2" Female NPSH	2-1/2" Female NPT	3.7100
SF25F30T	2-1/2" Female NST(NH)	3" Female NPT	2.7100
SF300F	3" Female NST(NH)	3" Female NPT	4.3300
SF300NYFD	3" Female NYFD	3" Female NPT	4.0000
SF400F	4" Female NST(NH)	4" Female NPT	10.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
