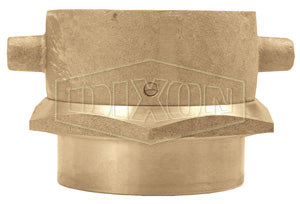

SF250F Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - 2-1/2" Female NST(NH) x 2-1/2" Female NPT

Name: SF250F Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - 2-1/2" Female NST(NH) x 2-1/2" Female NPT
Brand: Dixon
SKU: SF250F Dixon
Price: 97.23 USD
Availability: InStock

Save $10.04

$107.27

$107.27 - $107.27

$107.27

$97.23

$97.23 - $97.23

$97.23

Dixon Fire Fittings
(Open Snoot) Brass Female Swivel Adapters - Female Swivel x Female Rigid - Pin Lug - Cast Brass

Quantity

Specifications for Variant SKU: SF250F Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Female NST, 2-1/2in Female NPT
Material(s):	Brass

Features:
Double female rigid hexagon to swivel connection, rigid end thread is always NPT, hose thread is on swivel end. Finishes: -P polished, -C polished chrome plated.

Part Number	Female Swivel Thread	Female Rigid Thread	Weight (Lbs.)
SF150F	1-1/2" Female NST(NH)	1-1/2" Female NPT	1.1100
SF150S	1-1/2" Female NPSH	1-1/2" Female NPT	1.1600
SF25F15T	2-1/2" Female NST(NH)	1-1/2" Female NPT	3.76
SF25F20T	2-1/2" Female NST(NH)	2" Female NPT	2.0500
SF250NYFD	2-1/2" Female NYFD	2-1/2" Female NPT	3.5800
SF250F	2-1/2" Female NST(NH)	2-1/2" Female NPT	2.2500
SF250F-P	2-1/2" Female NST(NH)	2-1/2" Female NPT	2.8450
SF250F-C	2-1/2" Female NST(NH)	2-1/2" Female NPT	2.8550
SF250S	2-1/2" Female NPSH	2-1/2" Female NPT	3.7100
SF25F30T	2-1/2" Female NST(NH)	3" Female NPT	2.7100
SF300F	3" Female NST(NH)	3" Female NPT	4.3300
SF300NYFD	3" Female NYFD	3" Female NPT	4.0000
SF400F	4" Female NST(NH)	4" Female NPT	10.0000
