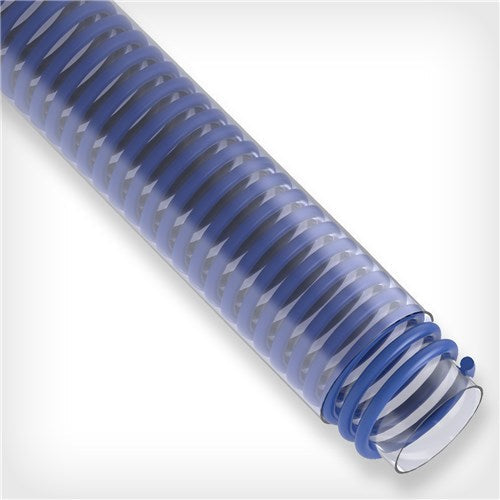

SPVC-LT-BLUE-1.5-100 by Texcel | SIGMA-LT-BLUE™ Series | FDA PVC Low Temp Suction Hose | 1-1/2" Hose ID | 90 PSI | 29 in/Hg Vacuum Rated | Blue | 100ft Length

Save $78.14

$273.48

$273.48 - $273.48

$273.48

$195.34

$195.34 - $195.34

$195.34

Texcel
SIGMA-LT-BLUE™ Series | FDA PVC Low Temp Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-LT-BLUE-1.5-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-LT-BLUE™ Series
Hose Color(s):	Blue
Internal Diameter:	1.50in
Outer Diameter:	1.77in
Tubing Construction:	PVC
Special Properties:	Outer Helix Protection

Food & Sanitary Hose

SIGMA-LT-BLUE™ Low Temp Food Grade Suction Hose

Heavy-duty, low-temp, blue, food-grade suction hose for wet material applications.

1

What is this hose used for?

Complies with applicable FDA and 3A requirements as well as USDA for use in dairy plants. Clear PVC and blue helix construction allows for visual confirmation of material flow; the smooth bore eliminates material build up, and the hose remains flexible in sub-zero temperatures.

Wet food materials
Dairy plants
Food processing

2

What are the key specifications?

Construction

Clear, flexible FDA PVC with smooth tube and cover and a blue helix; flexible in extreme cold

Temperature Range

-40°F to +150°F

Safety Factor

3:1

Standard Length

100'

Compliance

FDA, USDA and 3A compliant; phthalate free

Branding

TEXCEL® SIGMA-LT-BLUE™ - LOW TEMP BLUE FOOD GRADE SUCTION HOSE - LOT

3

What are the main product features?

Visual confirmation of material flow — clear PVC with blue helix.
Smooth bore — eliminates material build up.
Flexible in sub-zero temperatures

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
SPVC-LT-BLUE-.75-100	3/4"	1.01"	100'	90	29	2.5"	0.19
SPVC-LT-BLUE-1.0-100	1"	1.25"	100'	90	29	3"	0.22
SPVC-LT-BLUE-1.25-100	1-1/4"	1.56"	100'	90	29	4"	0.36
SPVC-LT-BLUE-1.5-100	1-1/2"	1.77"	100'	90	29	5"	0.45
SPVC-LT-BLUE-2.0-100	2"	2.36"	100'	90	29	7"	0.62
SPVC-LT-BLUE-2.5-100	2-1/2"	2.90"	100'	70	29	8"	0.87
SPVC-LT-BLUE-3.0-100	3"	3.42"	100'	60	29	12"	1.29
SPVC-LT-BLUE-4.0-100	4"	4.50"	100'	55	29	15"	1.83
SPVC-LT-BLUE-5.0-100	5"	5.59"	100'	45	28	25"	2.42
SPVC-LT-BLUE-6.0-100	6"	6.70"	100'	40	28	30"	3.36
SPVC-LT-BLUE-8.0-100	8"	—	100'	—	—	—	—

i

It is recommended that all food grade hose be thoroughly flushed prior to initial use.
