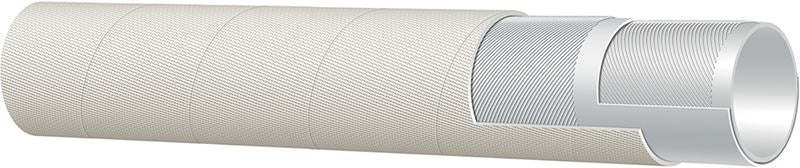

T957LL300X100 Alfagomma by Kuriyama | T957LL Series | Furnace Door Coolant Hose | 3" ID | 3.78" OD | 300 PSI | Beige | 100ft Length

Save $814.04

$3,216.01

$3,216.01 - $3,216.01

$3,216.01

$2,401.97

$2,401.97 - $2,401.97

$2,401.97

Kuriyama of America Inc.
Alfagomma | T146AK Series | Braided MSHA Mine Spray Hose

Used to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.

Package Quantity: 100 Foot

Specifications for Variant SKU: T957LL300X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T957LL Series
Hose Color(s):	Beige
Internal Diameter:	3in
Outer Diameter:	3.78in
Tubing Construction:	EPDM
Cover Construction:	EPDM

SPECIFICATIONS

Application:	To convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.
Other Ratings:	-	Tube:	White EPDM.
Reinforcement:	High tensile textile cords.	Cover:	Beige EPDM - heat resistant, nonconductive resin-coated dust-free fiberglass cover.
Service Temperature Range:	Tube: -40°F (-40°C) to +248°F (+120°C) Cover: -40°F (-40°C) to +1000°F (up to +540°C)	Coupling Suggestions:	-
Branding:	-

Part Number 100ft	ID		OD		Max Rec. Working Pressure	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	lbs/ft
T957LL050X100	1/2"	13mm	0.98"	25mm	300 PSI	0.30 lbs/ft
T957LL075X100	3/4"	19mm	1.22"	31mm	300 PSI	0.46 lbs/ft
T957LL100X100	1"	25mm	1.46"	37mm	300 PSI	0.56 lbs/ft
T957LL125X100	1-1/4"	32mm	1.81"	46mm	300 PSI	0.82 lbs/ft
T957LL150X100	1-1/2"	38mm	2.13"	54mm	300 PSI	0.98 lbs/ft
T957LL200X100	2"	51mm	2.64"	67mm	300 PSI	1.26 lbs/ft
T957LL250X100	2-1/2"	63mm	3.19"	81mm	300 PSI	1.55 lbs/ft
T957LL300X100	3"	76mm	3.78"	96mm	300 PSI	2.15 lbs/ft
