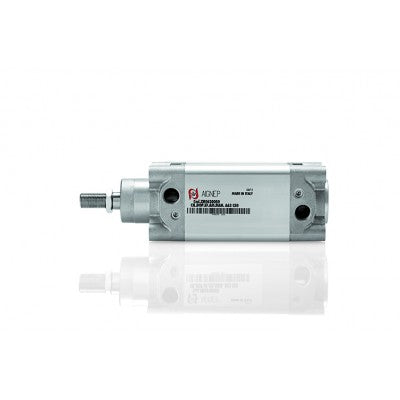

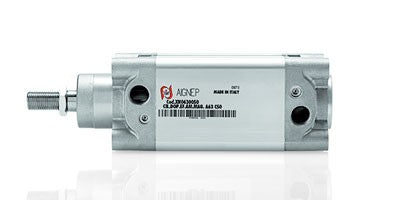

XH0320060 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 32mm Bore x 60mm Stroke

Name: XH0320060 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 32mm Bore x 60mm Stroke
Brand: AIGNEP
SKU: XH0320060 AIGNEP
Price: 66.66 USD
Availability: InStock

Save $44.44

$111.10

$111.10 - $111.10

$111.10

$66.66

$66.66 - $66.66

$66.66

Quantity

Specifications for Variant SKU: XH0320060 AIGNEP
Series:	ISO 15552/6431 Profile Cylinders Series

DOUBLE ACTING CUSHIONED MAGNETIC

Technical Characteristics:
Temperature:	Min: 32°F (0°C) Max: 176°F (80°C)	Pressure:	1 ÷ 10 bar
Component Parts and Materials:	• Chrome steel C40 piston rod • Zinc-plated steel Nut • Polyurethane Rod Seal or FKM • Aluminium Front cover • Polyurethane Cushioning seals or FKM • Zinc-plated steel Screw cushioning • Aluminium Back cover • Anodised aluminium cylinder shape body • Zinc-plated steel Screw • Sintered bronze Bearing • Polyurethane Piston seals or FKM • Plastoferrite Magnet • Front Aluminium Piston • Support Magnet • Rear Aluminium Piston • O-Ring in NBR or FKM • O-Ring in NBR or FKM

Part Number	Size	Stroke
XH0320005	32 mm	5 mm
XH0320010	32 mm	10 mm
XH0320015	32 mm	32 mm
XH0320020	32 mm	15 mm
XH0320025	32 mm	25 mm
XH0320030	32 mm	30 mm
XH0320035	32 mm	35 mm
XH0320040	32 mm	40 mm
XH0320045	32 mm	45 mm
XH0320050	32 mm	50 mm
XH0320055	32 mm	55 mm
XH0320060	32 mm	60 mm
XH0320065	32 mm	65 mm
XH0320070	32 mm	70 mm
XH0320075	32 mm	75 mm
XH0320080	32 mm	80 mm
XH0320085	32 mm	85 mm
XH0320095	32 mm	95 mm
XH0320100	32 mm	100 mm
XH0320110	32 mm	110 mm
XH0320120	32 mm	120 mm
XH0320125	32 mm	125 mm
XH0320130	32 mm	130 mm
XH0320140	32 mm	140 mm
XH0320150	32 mm	150 mm
XH0320160	32 mm	160 mm
XH0320165	32 mm	165 mm
XH0320170	32 mm	170 mm
XH0320175	32 mm	175 mm
XH0320180	32 mm	180 mm
XH0320200	32 mm	200 mm
XH0320220	32 mm	220 mm
XH0320230	32 mm	230 mm
XH0320245	32 mm	245 mm
XH0320250	32 mm	250 mm
XH0320260	32 mm	260 mm
XH0320265	32 mm	265 mm
XH0320270	32 mm	270 mm
XH0320275	32 mm	275 mm
XH0320280	32 mm	280 mm
XH0320290	32 mm	290 mm
XH0320300	32 mm	300 mm
XH0320310	32 mm	310 mm
XH0320320	32 mm	320 mm
XH0320330	32 mm	330 mm
XH0320340	32 mm	340 mm
XH0320350	32 mm	350 mm
XH0320360	32 mm	360 mm
XH0320365	32 mm	360 mm
XH0320400	32 mm	400 mm
XH0320410	32 mm	410 mm
XH0320420	32 mm	420 mm
XH0320440	32 mm	440 mm
XH0320450	32 mm	450 mm
XH0320480	32 mm	480 mm
XH0320500	32 mm	500 mm
XH0320550	32 mm	550 mm
XH0320560	32 mm	560 mm
XH0320590	32 mm	590 mm
XH0320595	32 mm	95 mm
XH0320600	32 mm	600 mm
XH0320650	32 mm	650 mm
XH0320660	32 mm	660 mm
XH0320700	32 mm	700 mm
XH0320720	32 mm	720 mm
XH0320750	32 mm	750 mm
XH0320800	32 mm	800 mm
XH0320850	32 mm	850 mm
XH0320900	32 mm	900 mm
XH0320920	32 mm	920 mm
XH0320980	32 mm	980 mm
XH0321000	32 mm	1000 mm
XH0321020	32 mm	1020 mm
	32 mm	1100 mm
XH0321200	32 mm	1200 mm
XH0321270	32 mm	1270 mm
XH0321300	32 mm	1300 mm
XH0321350	32 mm	1350 mm
XH0321500	32 mm	1500 mm
XH0322500	32 mm	2500 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.

Shop Parts by AIGNEP
