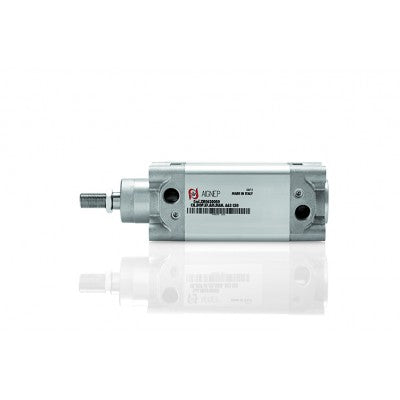

XH0320100 AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 32mm Bore x 100mm Stroke

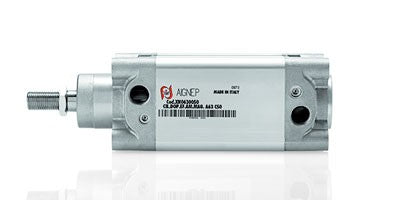

XH0320100 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 32mm Bore x 100mm Stroke

Save $6.90 Save $6.90
$69.03
$69.03 - $69.03
$69.03
$62.13
$62.13 - $62.13
$62.13
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: XH0320100 AIGNEP
Series: ISO 15552/6431 Profile Cylinders Series
DOUBLE ACTING CUSHIONED MAGNETIC
Technical Characteristics:
Temperature: Min: 32°F (0°C)
Max: 176°F (80°C)		 Pressure: 1 ÷ 10 bar
Component Parts and Materials: • Chrome steel C40 piston rod
• Zinc-plated steel Nut
• Polyurethane Rod Seal or FKM
• Aluminium Front cover
• Polyurethane Cushioning seals or FKM
• Zinc-plated steel Screw cushioning
• Aluminium Back cover
• Anodised aluminium cylinder shape body
• Zinc-plated steel Screw
• Sintered bronze Bearing
• Polyurethane Piston seals or FKM
• Plastoferrite Magnet
• Front Aluminium Piston
• Support Magnet
• Rear Aluminium Piston
• O-Ring in NBR or FKM
• O-Ring in NBR or FKM
Part Number Size Stroke
XH0320005 32 mm 5 mm
XH0320010 32 mm 10 mm
XH0320015 32 mm 32 mm
XH0320020 32 mm 15 mm
XH0320025 32 mm 25 mm
XH0320030 32 mm 30 mm
XH0320035 32 mm 35 mm
XH0320040 32 mm 40 mm
XH0320045 32 mm 45 mm
XH0320050 32 mm 50 mm
XH0320055 32 mm 55 mm
XH0320060 32 mm 60 mm
XH0320065 32 mm 65 mm
XH0320070 32 mm 70 mm
XH0320075 32 mm 75 mm
XH0320080 32 mm 80 mm
XH0320085 32 mm 85 mm
XH0320095 32 mm 95 mm
XH0320100 32 mm 100 mm
XH0320110 32 mm 110 mm
XH0320120 32 mm 120 mm
XH0320125 32 mm 125 mm
XH0320130 32 mm 130 mm
XH0320140 32 mm 140 mm
XH0320150 32 mm 150 mm
XH0320160 32 mm 160 mm
XH0320165 32 mm 165 mm
XH0320170 32 mm 170 mm
XH0320175 32 mm 175 mm
XH0320180 32 mm 180 mm
XH0320200 32 mm 200 mm
XH0320220 32 mm 220 mm
XH0320230 32 mm 230 mm
XH0320245 32 mm 245 mm
XH0320250 32 mm 250 mm
XH0320260 32 mm 260 mm
XH0320265 32 mm 265 mm
XH0320270 32 mm 270 mm
XH0320275 32 mm 275 mm
XH0320280 32 mm 280 mm
XH0320290 32 mm 290 mm
XH0320300 32 mm 300 mm
XH0320310 32 mm 310 mm
XH0320320 32 mm 320 mm
XH0320330 32 mm 330 mm
XH0320340 32 mm 340 mm
XH0320350 32 mm 350 mm
XH0320360 32 mm 360 mm
XH0320365 32 mm 360 mm
XH0320400 32 mm 400 mm
XH0320410 32 mm 410 mm
XH0320420 32 mm 420 mm
XH0320440 32 mm 440 mm
XH0320450 32 mm 450 mm
XH0320480 32 mm 480 mm
XH0320500 32 mm 500 mm
XH0320550 32 mm 550 mm
XH0320560 32 mm 560 mm
XH0320590 32 mm 590 mm
XH0320595 32 mm 95 mm
XH0320600 32 mm 600 mm
XH0320650 32 mm 650 mm
XH0320660 32 mm 660 mm
XH0320700 32 mm 700 mm
XH0320720 32 mm 720 mm
XH0320750 32 mm 750 mm
XH0320800 32 mm 800 mm
XH0320850 32 mm 850 mm
XH0320900 32 mm 900 mm
XH0320920 32 mm 920 mm
XH0320980 32 mm 980 mm
XH0321000 32 mm 1000 mm
XH0321020 32 mm 1020 mm
32 mm 1100 mm
XH0321200 32 mm 1200 mm
XH0321270 32 mm 1270 mm
XH0321300 32 mm 1300 mm
XH0321350 32 mm 1350 mm
XH0321500 32 mm 1500 mm
XH0322500 32 mm 2500 mm
