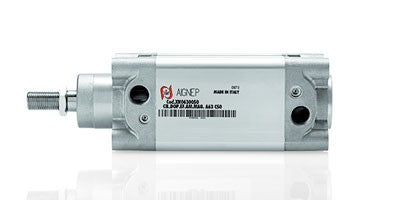

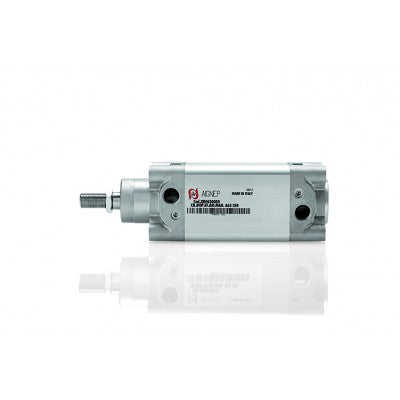

XH1000100 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 100mm Bore x 100mm Stroke

Name: XH1000100 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 100mm Bore x 100mm Stroke
Brand: AIGNEP
SKU: XH1000100 AIGNEP
Price: 171.85 USD
Availability: InStock

Save $1.74

$173.59

$173.59 - $173.59

$173.59

$171.85

$171.85 - $171.85

$171.85

Quantity

Specifications for Variant SKU: XH1000100 AIGNEP
Series:	ISO 15552/6431 Profile Cylinders Series

DOUBLE ACTING CUSHIONED MAGNETIC

Technical Characteristics:
Temperature:	Min: 32°F (0°C) Max: 176°F (80°C)	Pressure:	1 ÷ 10 bar
Component Parts and Materials:	• Chrome steel C40 piston rod • Zinc-plated steel Nut • Polyurethane Rod Seal or FKM • Aluminium Front cover • Polyurethane Cushioning seals or FKM • Zinc-plated steel Screw cushioning • Aluminium Back cover • Anodised aluminium cylinder shape body • Zinc-plated steel Screw • Sintered bronze Bearing • Polyurethane Piston seals or FKM • Plastoferrite Magnet • Front Aluminium Piston • Support Magnet • Rear Aluminium Piston • O-Ring in NBR or FKM • O-Ring in NBR or FKM

Part Number	Size	Stroke
XH1000015	100 mm	15 mm
XH1000025	100 mm	25 mm
XH1000030	100 mm	30 mm
XH1000040	100 mm	40 mm
XH1000050	100 mm	50 mm
XH1000060	100 mm	60 mm
XH1000070	100 mm	70 mm
XH1000075	100 mm	75 mm
XH1000080	100 mm	80 mm
XH1000100	100 mm	100 mm
XH1000120	100 mm	120 mm
XH1000125	100 mm	125 mm
XH1000140	100 mm	140 mm
XH1000150	100 mm	150 mm
XH1000160	100 mm	160 mm
XH1000170	100 mm	170 mm
XH1000175	100 mm	175 mm
XH1000180	100 mm	180 mm
XH1000200	100 mm	200 mm
XH1000220	100 mm	220 mm
XH1000230	100 mm	230 mm
XH1000240	100 mm	240 mm
XH1000250	100 mm	250 mm
XH1000260	100 mm	260 mm
XH1000270	100 mm	270 mm
XH1000275	100 mm	275 mm
XH1000280	100 mm	280 mm
XH1000295	100 mm	295 mm
XH1000300	100 mm	300 mm
XH1000310	100 mm	310 mm
XH1000320	100 mm	320 mm
XH1000350	100 mm	350 mm
XH1000360	100 mm	360 mm
XH1000400	100 mm	400 mm
XH1000450	100 mm	450 mm
XH1000500	100 mm	500 mm
XH1000520	100 mm	520 mm
XH1000550	100 mm	550 mm
XH1000600	100 mm	600 mm
XH1000620	100 mm	620 mm
XH1000640	100 mm	640 mm
XH1000650	100 mm	650 mm
XH1000700	100 mm	700 mm
XH1000750	100 mm	750 mm
XH1000800	100 mm	800 mm
XH1000850	100 mm	850 mm
XH1000900	100 mm	900 mm
XH1000950	100 mm	950 mm
XH1001000	100 mm	1000 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
