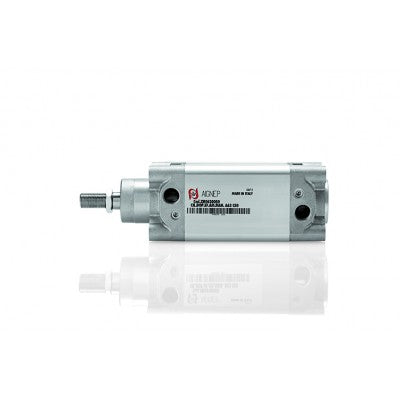

XH1000850 AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 100mm Bore x 850mm Stroke

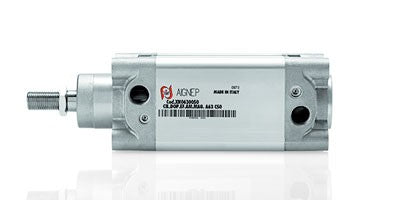

XH1000850 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 100mm Bore x 850mm Stroke

Save $34.05 Save $34.05
$340.53
$340.53 - $340.53
$340.53
$306.48
$306.48 - $306.48
$306.48
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: XH1000850 AIGNEP
Series: ISO 15552/6431 Profile Cylinders Series
DOUBLE ACTING CUSHIONED MAGNETIC
Technical Characteristics:
Temperature: Min: 32°F (0°C)
Max: 176°F (80°C)		 Pressure: 1 ÷ 10 bar
Component Parts and Materials: • Chrome steel C40 piston rod
• Zinc-plated steel Nut
• Polyurethane Rod Seal or FKM
• Aluminium Front cover
• Polyurethane Cushioning seals or FKM
• Zinc-plated steel Screw cushioning
• Aluminium Back cover
• Anodised aluminium cylinder shape body
• Zinc-plated steel Screw
• Sintered bronze Bearing
• Polyurethane Piston seals or FKM
• Plastoferrite Magnet
• Front Aluminium Piston
• Support Magnet
• Rear Aluminium Piston
• O-Ring in NBR or FKM
• O-Ring in NBR or FKM
Part Number Size Stroke
XH1000015 100 mm 15 mm
XH1000025 100 mm 25 mm
XH1000030 100 mm 30 mm
XH1000040 100 mm 40 mm
XH1000050 100 mm 50 mm
XH1000060 100 mm 60 mm
XH1000070 100 mm 70 mm
XH1000075 100 mm 75 mm
XH1000080 100 mm 80 mm
XH1000100 100 mm 100 mm
XH1000120 100 mm 120 mm
XH1000125 100 mm 125 mm
XH1000140 100 mm 140 mm
XH1000150 100 mm 150 mm
XH1000160 100 mm 160 mm
XH1000170 100 mm 170 mm
XH1000175 100 mm 175 mm
XH1000180 100 mm 180 mm
XH1000200 100 mm 200 mm
XH1000220 100 mm 220 mm
XH1000230 100 mm 230 mm
XH1000240 100 mm 240 mm
XH1000250 100 mm 250 mm
XH1000260 100 mm 260 mm
XH1000270 100 mm 270 mm
XH1000275 100 mm 275 mm
XH1000280 100 mm 280 mm
XH1000295 100 mm 295 mm
XH1000300 100 mm 300 mm
XH1000310 100 mm 310 mm
XH1000320 100 mm 320 mm
XH1000350 100 mm 350 mm
XH1000360 100 mm 360 mm
XH1000400 100 mm 400 mm
XH1000450 100 mm 450 mm
XH1000500 100 mm 500 mm
XH1000520 100 mm 520 mm
XH1000550 100 mm 550 mm
XH1000600 100 mm 600 mm
XH1000620 100 mm 620 mm
XH1000640 100 mm 640 mm
XH1000650 100 mm 650 mm
XH1000700 100 mm 700 mm
XH1000750 100 mm 750 mm
XH1000800 100 mm 800 mm
XH1000850 100 mm 850 mm
XH1000900 100 mm 900 mm
XH1000950 100 mm 950 mm
XH1001000 100 mm 1000 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
