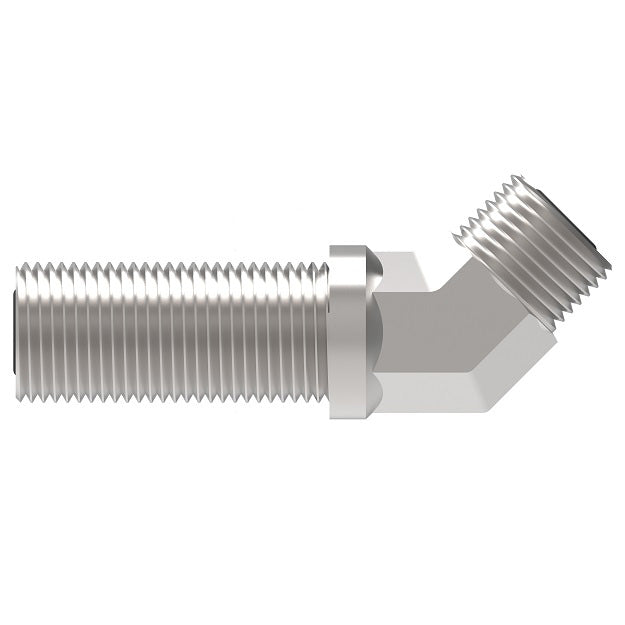

FF2144H4-0606S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

FF2144H4-0606S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

$35.72 - $35.72
$35.72
$35.72 - $35.72
$35.72

Aeroquip® by Danfoss
ORS Male/ORS Male Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2144H4-0606S Danfoss
Brand: Aeroquip
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE 520801
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B
FF2144T0404S - 0.25" 9/16-18 9/16-18 0.63" 1.73"
FF2144T0606S FF2144H4-0606S 0.38" 11/16-16 11/16-16 0.74" 1.91"
FF2144T0808S FF2144H4-0808S 0.50" 13/16-16 13/16-16 0.80" 2.01"
FF2144T1616S - 1.00" 1-7/16-12 1-7/16-12 1.18" 2.57"
=
