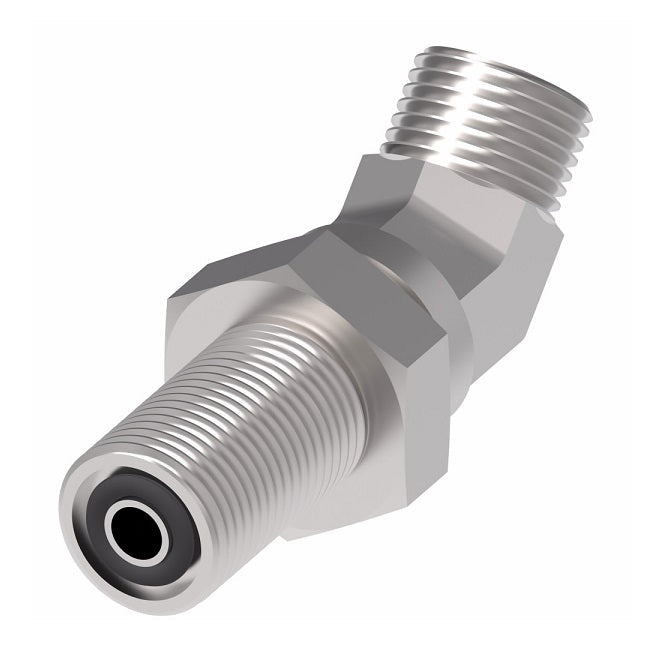

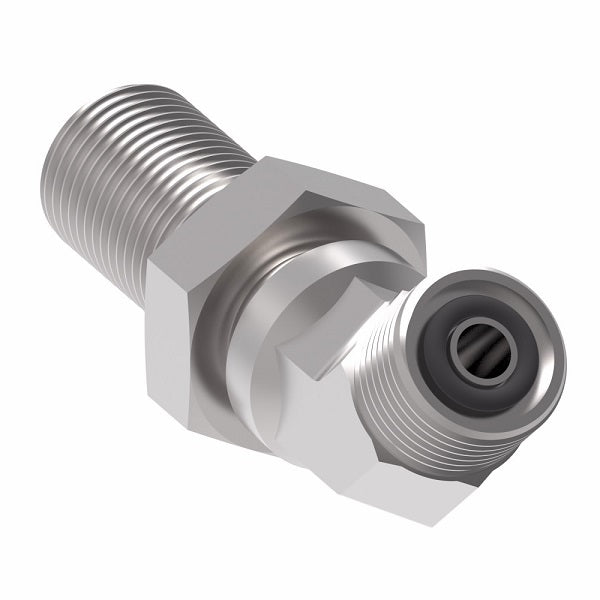

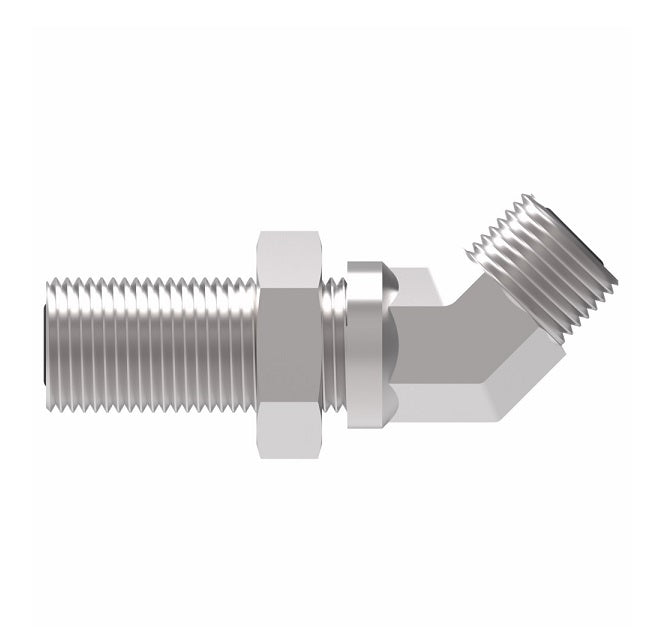

FF2144T1616S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter | -16 Male O-Ring Face Seal x -16 Male O-Ring Face Seal | Steel

FF2144T1616S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter | -16 Male O-Ring Face Seal x -16 Male O-Ring Face Seal | Steel

Name: FF2144T1616S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter | -16 Male O-Ring Face Seal x -16 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2144T1616S Danfoss
Price: 80.14 USD
Availability: InStock

$80.14 - $80.14

$80.14

$80.14 - $80.14

$80.14

Aeroquip® by Danfoss
ORS Male/ORS Male Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2144T1616S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1in Male O-Ring Face Seal, 1in Male O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520801
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Steel Part Number without Nut	Tube OD	Thread T1	Thread T2	A	B
FF2144T0404S	-	0.25"	9/16-18	9/16-18	0.63"	1.73"
FF2144T0606S	FF2144H4-0606S	0.38"	11/16-16	11/16-16	0.74"	1.91"
FF2144T0808S	FF2144H4-0808S	0.50"	13/16-16	13/16-16	0.80"	2.01"
FF2144T1616S	-	1.00"	1-7/16-12	1-7/16-12	1.18"	2.57"

=

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
