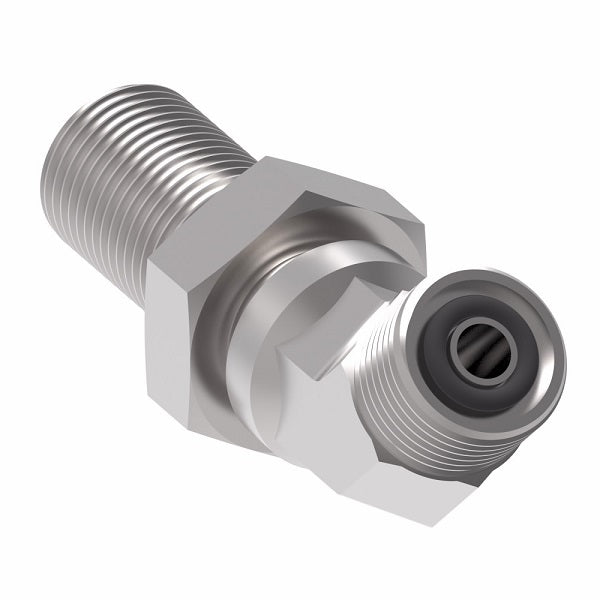

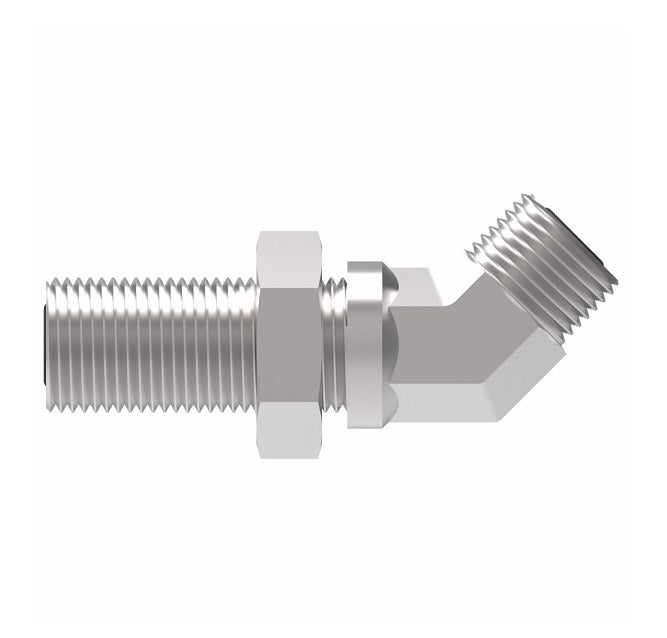

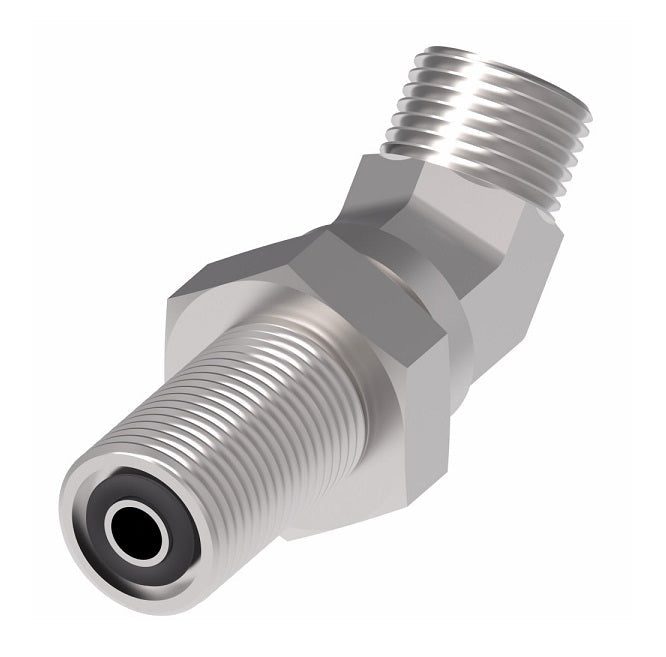

FF2144T0404S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel

FF2144T0404S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel

Name: FF2144T0404S Aeroquip by Danfoss | ORS Male/ORS Male 45° Elbow Bulkhead Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2144T0404S Danfoss
Price: 18.76 USD
Availability: InStock

$18.76 - $18.76

$18.76

$18.76 - $18.76

$18.76

Aeroquip® by Danfoss
ORS Male/ORS Male Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2144T0404S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Male O-Ring Face Seal, 1/4in Male O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520801
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Steel Part Number without Nut	Tube OD	Thread T1	Thread T2	A	B
FF2144T0404S	-	0.25"	9/16-18	9/16-18	0.63"	1.73"
FF2144T0606S	FF2144H4-0606S	0.38"	11/16-16	11/16-16	0.74"	1.91"
FF2144T0808S	FF2144H4-0808S	0.50"	13/16-16	13/16-16	0.80"	2.01"
FF2144T1616S	-	1.00"	1-7/16-12	1-7/16-12	1.18"	2.57"

=
