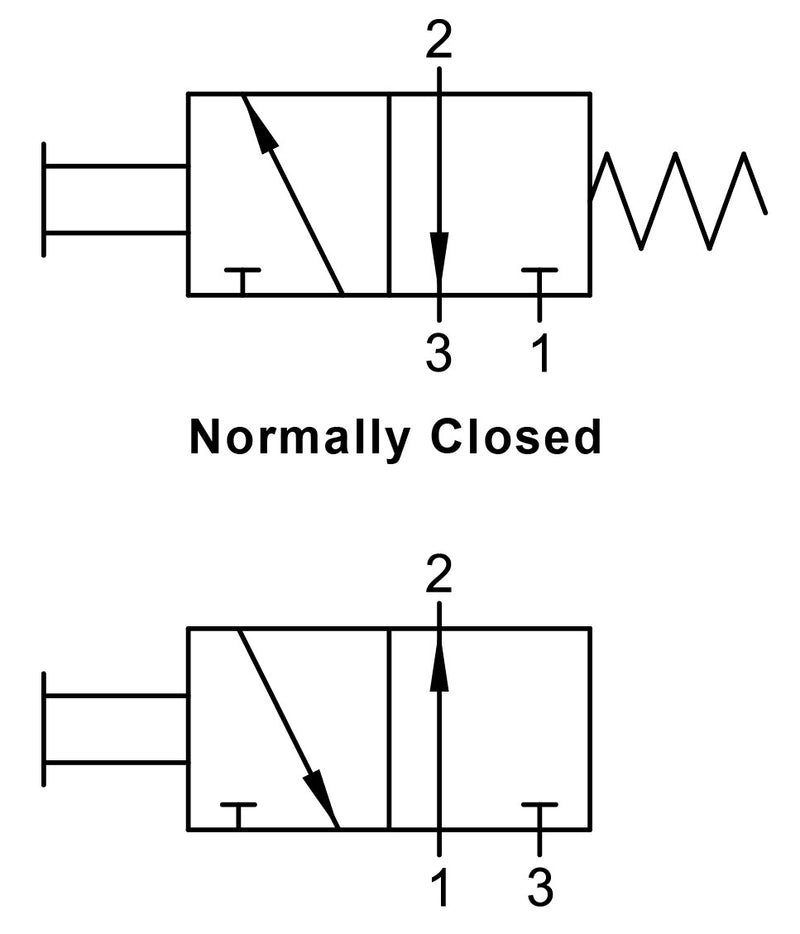

01VT03NC03N AIGNEP | 01V Control Valves Series Series | 3 way/2 position | Normally Closed | Button Operated Spring Return | 1/4" NPTF

01VT03NC03N by AIGNEP | 01V Control Valves Series Series | 3 way/2 position | Normally Closed | Button Operated Spring Return | 1/4" NPTF

Save $23.45

$58.62

$58.62 - $58.62

$58.62

$35.17

$35.17 - $35.17

$35.17

Specifications for Variant SKU: 01VT03NC03N AIGNEP
Series:	01V Control Valves Series Series
Ends Configuration:	1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Plastic

MANUAL VALVES

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number	Ways	Reactuation	Function	Size
01VT03NC02N	3/2	Monostable Spring Return	Normally Closed (NC)	1/8" NPTF
01VT03NC03N	3/2	Monostable Spring Return	Normally Closed (NC)	1/4" NPTF
01VT130002N	3/2	Monostable Spring Return	No Function (00)	1/8" NPTF
01VT130003N	3/2	Monostable Spring Return	No Function (00)	1/4" NPTF
01VT050002N	5/2	Monostable Spring Return	No Function (00)	1/8" NPTF
01VT050003N	5/2	Monostable Spring Return	No Function (00)	1/4" NPTF
01VT150002N	5/2	Monostable Spring Return	No Function (00)	1/8" NPTF
01VT150003N	5/2	Monostable Spring Return	No Function (00)	1/4" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
