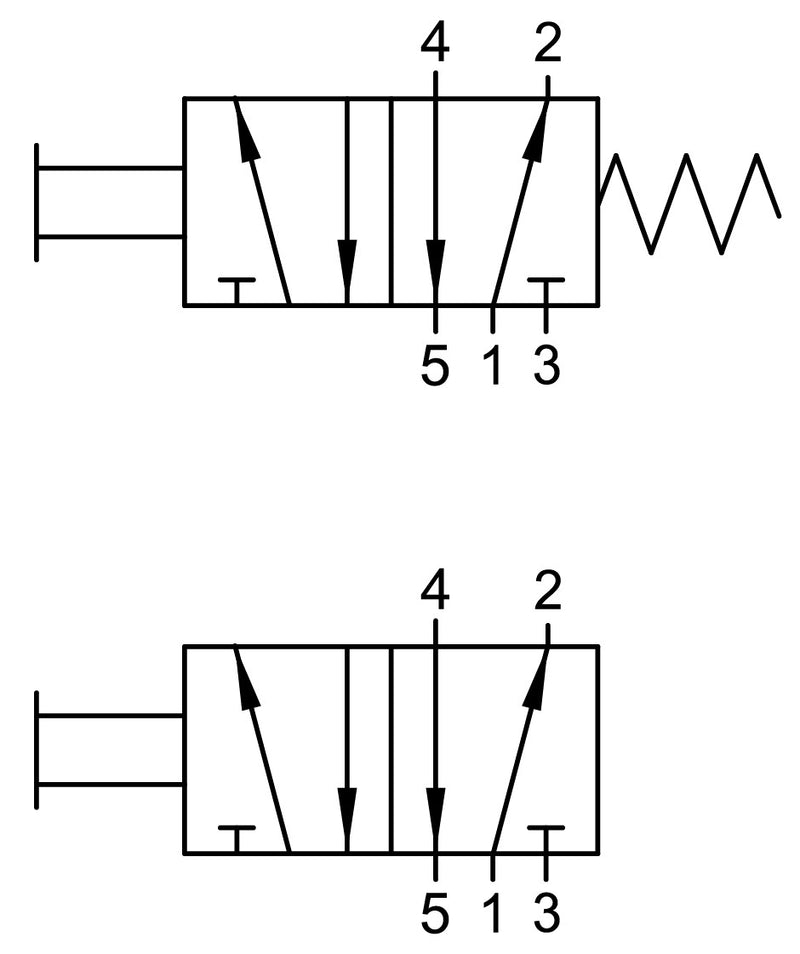

01VT050002N AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Push Button Spring Return | 1/8" NPTF
01VT050002N by AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Push Button Spring Return | 1/8" NPTF
01VT050002N AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Push Button Spring Return | 1/8" NPTF

01VT050002N by AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Push Button Spring Return | 1/8" NPTF

Save $25.13 Save $25.13
$62.82
$62.82 - $62.82
$62.82
$37.69
$37.69 - $37.69
$37.69
Specifications for Variant SKU: 01VT050002N AIGNEP
Series: 01V Control Valves Series Series
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Plastic
MANUAL VALVES
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VT03NC02N 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VT03NC03N 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VT130002N 3/2 Monostable Spring Return No Function (00) 1/8" NPTF
01VT130003N 3/2 Monostable Spring Return No Function (00) 1/4" NPTF
01VT050002N 5/2 Monostable Spring Return No Function (00) 1/8" NPTF
01VT050003N 5/2 Monostable Spring Return No Function (00) 1/4" NPTF
01VT150002N 5/2 Monostable Spring Return No Function (00) 1/8" NPTF
01VT150003N 5/2 Monostable Spring Return No Function (00) 1/4" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
