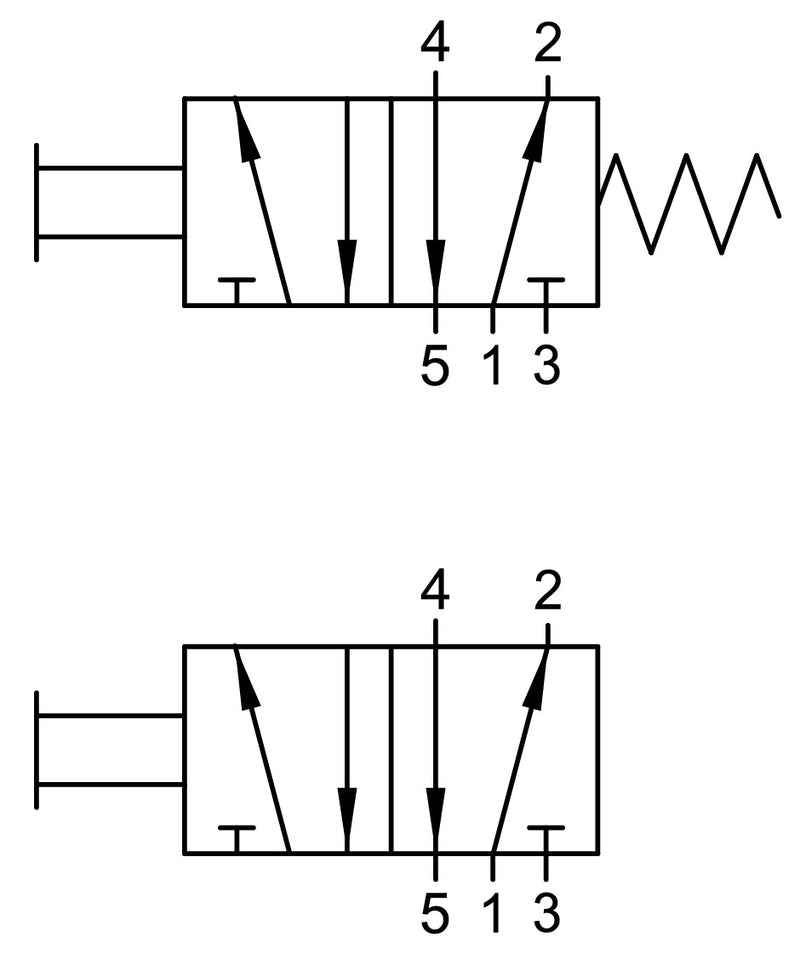

01VT150003N AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Button Operated Push/Pull | 1/4" NPTF

01VT150003N by AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Button Operated Push/Pull | 1/4" NPTF

Name: 01VT150003N by AIGNEP | 01V Control Valves Series Series | 5 port/4 way/2 position | Button Operated Push/Pull | 1/4" NPTF
Brand: AIGNEP
SKU: 01VT150003N AIGNEP
Price: 41.21 USD
Availability: InStock

Save $27.47

$68.68

$68.68 - $68.68

$68.68

$41.21

$41.21 - $41.21

$41.21

Specifications for Variant SKU: 01VT150003N AIGNEP
Series:	01V Control Valves Series Series
Ends Configuration:	1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Plastic

MANUAL VALVES

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number	Ways	Reactuation	Function	Size
01VT03NC02N	3/2	Monostable Spring Return	Normally Closed (NC)	1/8" NPTF
01VT03NC03N	3/2	Monostable Spring Return	Normally Closed (NC)	1/4" NPTF
01VT130002N	3/2	Monostable Spring Return	No Function (00)	1/8" NPTF
01VT130003N	3/2	Monostable Spring Return	No Function (00)	1/4" NPTF
01VT050002N	5/2	Monostable Spring Return	No Function (00)	1/8" NPTF
01VT050003N	5/2	Monostable Spring Return	No Function (00)	1/4" NPTF
01VT150002N	5/2	Monostable Spring Return	No Function (00)	1/8" NPTF
01VT150003N	5/2	Monostable Spring Return	No Function (00)	1/4" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
