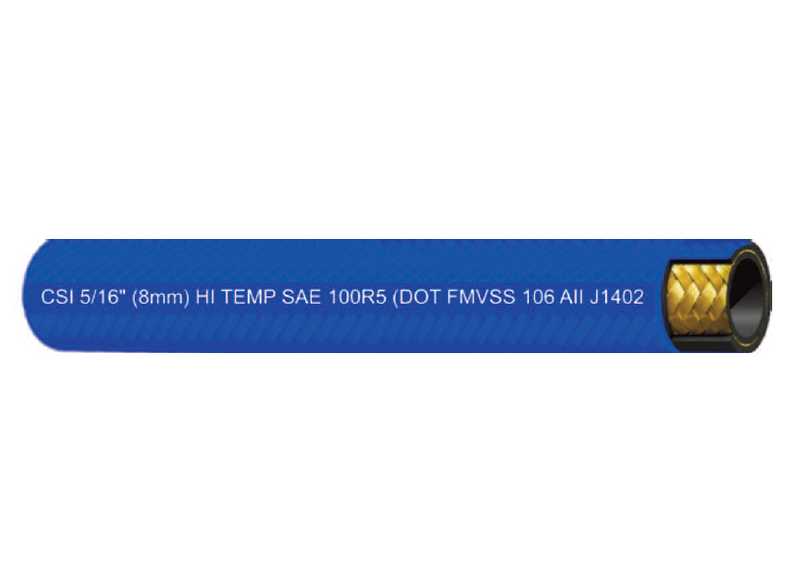

1/4" HTR5 Couplamatic -05 Textile Covered One Wire High Temperature Hydraulic Hose (SAE 100R5) (SAE J1402, DOT FMVSS 106) - 1/4" ID - 250ft

1/4" HTR5 by Couplamatic | -05 Textile Covered | One Wire High Temperature Hydraulic Hose | SAE 100R5 | SAE J1402 | DOT FMVSS 106 | 1/4" ID | 250ft

Save $121.04 Save $121.04
$1,089.37
$1,089.37 - $1,089.37
$1,089.37
$968.33
$968.33 - $968.33
$968.33

Couplamatic Systems Inc.
One Wire Braid - HTR5 High Temperature Textile Covered Hydraulic Hose - (SAE 100R5) - (SAE J1402, DOT FMVSS 106 AII)

Package Quantity: 250 FT

Specifications for Variant SKU: 1/4" HTR5 Couplamatic | 250 |
Series: HTR5 Series
Hose Color(s): Blue
Dash Size: -4
Internal Diameter: 0.25in
Outer Diameter: 0.58in
Cover Construction: Textile Braid
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE 100R5, SAE J1402
Compatible with the following Series: R5 Series  |   Reusable Couplings Series
Applications: Medium Pressure High Temp Hydraulics, Air, Water. SAE Rating: SAE 100R5, SAE J1402, DOT FMVSS 106 AII (3/16" thru 5/8")
Cover: Blue Textile Braid, High Temperature Reinforcement: One Wire Braid
Temperature: -40F to +300F (-40C to +150C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
3/16" HTR5 3/16"(-04) 0.520" 3,000 lbs. 12,000 lbs. 3" 15 lbs. 250ft
1/4" HTR5 1/4"(-05) 0.580" 3,000 lbs. 12,000 lbs. 3.4" 17 lbs. 250ft
5/16" HTR5 5/16"(-06) 0.680" 2,250 lbs. 9,000 lbs. 4" 22 lbs. 250ft
13/32" HTR5 13/32"(-08) 0.770" 2,000 lbs. 8,000 lbs. 4.6" 30 lbs. 250ft
1/2" HTR5 1/2"(-10) 0.921" 1,750 lbs. 7,000 lbs. 5.5" 37 lbs. 250ft
5/8" HTR5 5/8"(-12) 1.080" 1,500 lbs. 6,000 lbs. 6.5" 46 lbs. 250ft
7/8" HTR5 7/8"(-16) 1.240" 800 lbs. 3,200 lbs. 7.4" 48 lbs. 250ft
1-1/8" HTR5 1-1/8"(-20) 1.500" 625 lbs. 2,500 lbs. 9" 52 lbs. 100ft
1-3/8" HTR5 1-3/8"(-24) 1.750" 500 lbs. 2,000 lbs. 10.5" 81 lbs. Bulk
1-13/16" HTR5 1-13/16"(-32) 2.220" 350 lbs. 1,400 lbs. 13.2" 99 lbs. Bulk

*Cut lengths available*
