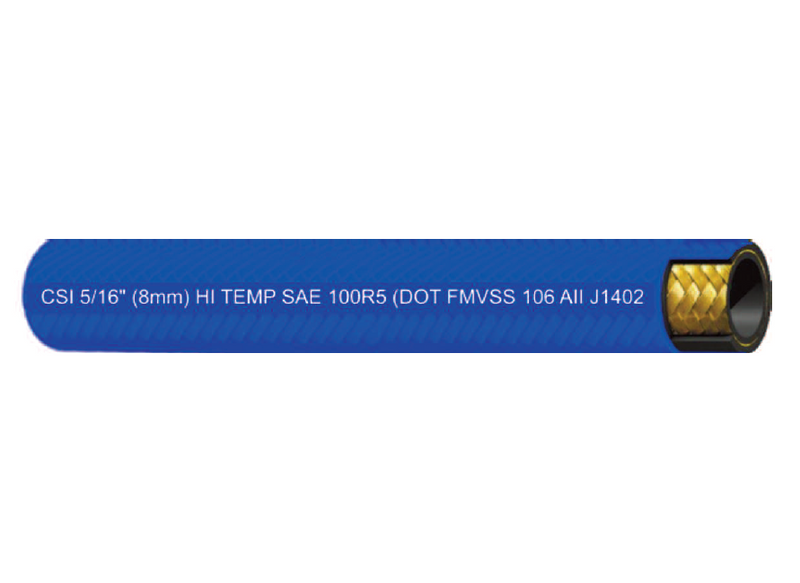

5/8" HTR5 Couplamatic -12 Textile Covered One Wire High Temperature Hydraulic Hose (SAE 100R5) (SAE J1402, DOT FMVSS 106) - 5/8" ID - 250ft

5/8" HTR5 by Couplamatic | -12 Textile Covered | One Wire High Temperature Hydraulic Hose | SAE 100R5 | SAE J1402 | DOT FMVSS 106 | 5/8" ID | 250ft

Save $217.92

$1,961.25

$1,961.25 - $1,961.25

$1,961.25

$1,743.33

$1,743.33 - $1,743.33

$1,743.33

Couplamatic Systems Inc.
One Wire Braid - HTR5 High Temperature Textile Covered Hydraulic Hose - (SAE 100R5) - (SAE J1402, DOT FMVSS 106 AII)

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 5/8" HTR5 Couplamatic \| 250 \|
Series:	HTR5 Series
Hose Color(s):	Blue
Dash Size:	-10
Internal Diameter:	0.625in
Outer Diameter:	1.08in
Cover Construction:	Textile Braid
Applicable Specs & Approvals:	D.O.T. FMVSS 106, SAE 100R5, SAE J1402
Compatible with the following Series:	R5 Series \| Reusable Couplings Series

Applications:	Medium Pressure High Temp Hydraulics, Air, Water.	SAE Rating:	SAE 100R5, SAE J1402, DOT FMVSS 106 AII (3/16" thru 5/8")
Cover:	Blue Textile Braid, High Temperature	Reinforcement:	One Wire Braid
Temperature:	-40F to +300F (-40C to +150C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
3/16" HTR5	3/16"(-04)	0.520"	3,000 lbs.	12,000 lbs.	3"	15 lbs.	250ft
1/4" HTR5	1/4"(-05)	0.580"	3,000 lbs.	12,000 lbs.	3.4"	17 lbs.	250ft
5/16" HTR5	5/16"(-06)	0.680"	2,250 lbs.	9,000 lbs.	4"	22 lbs.	250ft
13/32" HTR5	13/32"(-08)	0.770"	2,000 lbs.	8,000 lbs.	4.6"	30 lbs.	250ft
1/2" HTR5	1/2"(-10)	0.921"	1,750 lbs.	7,000 lbs.	5.5"	37 lbs.	250ft
5/8" HTR5	5/8"(-12)	1.080"	1,500 lbs.	6,000 lbs.	6.5"	46 lbs.	250ft
7/8" HTR5	7/8"(-16)	1.240"	800 lbs.	3,200 lbs.	7.4"	48 lbs.	250ft
1-1/8" HTR5	1-1/8"(-20)	1.500"	625 lbs.	2,500 lbs.	9"	52 lbs.	100ft
1-3/8" HTR5	1-3/8"(-24)	1.750"	500 lbs.	2,000 lbs.	10.5"	81 lbs.	Bulk
1-13/16" HTR5	1-13/16"(-32)	2.220"	350 lbs.	1,400 lbs.	13.2"	99 lbs.	Bulk

*Cut lengths available*
